Product Overview
Features:
Specification:
Model: MD30-60
Length: 60 mm/2.4in
Width: 5.8 mm/0.2in
Range: 0 ~ 30 kg
Thickness:less than 0.60mm
Response point: less than 200g
Durability: more than 1 million times
Response time: less than 1ms
Recovery time: less than 15ms
Working temperature:- 20℃~ 60℃
EMI: no
ESD: Not sensitive
Initial resistance: more than 10mΩ
Weight:1g
Package list:
1 x Pressure Sensor
Specification:
Model: MD30-60
Length: 60 mm/2.4in
Width: 5.8 mm/0.2in
Range: 0 ~ 30 kg
Thickness:less than 0.60mm
Response point: less than 200g
Durability: more than 1 million times
Response time: less than 1ms
Recovery time: less than 15ms
Working temperature:- 20℃~ 60℃
EMI: no
ESD: Not sensitive
Initial resistance: more than 10mΩ
Weight:1g
Package list:
1 x Pressure Sensor
Features

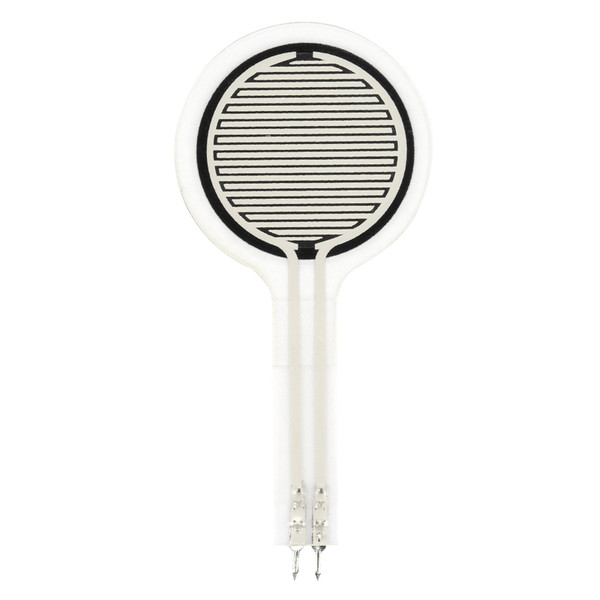

1、The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc.
2、Waterproof and pressure sensitive dual function
3、This pressure sensor has the characteristic of high stability, and long service life
4、Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
5、Application: smart home, automotive electronics, new energy
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 0.39 Inch |
| Length | 2.73 Inch |
