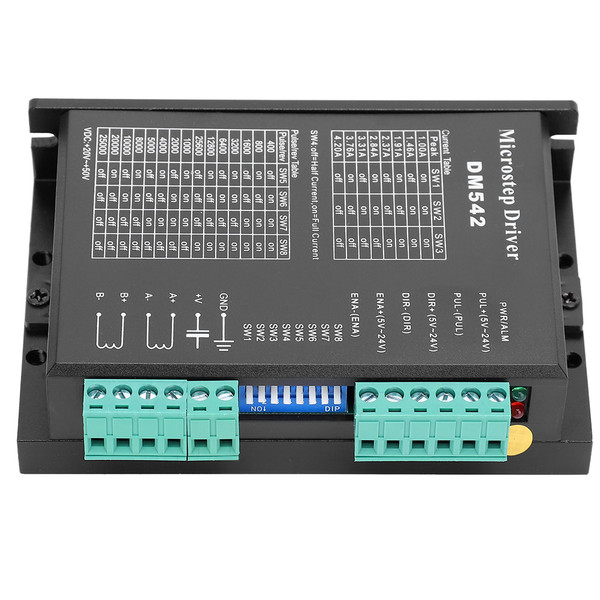

Product Overview
Item Type: Microstep driver
Model: DM542
Color: Black
Power Supply: DC 24-50V (36V recommended)
Maximum Current: 4.2A
Output Phase Current: 1.0A-4.2A
Logic Input Current: 8-20mA (10mA recommended)
Step Pulse Response Frequency: 0-200KHz
Operating Temperature: 0℃ to +50℃
Model: DM542
Color: Black
Power Supply: DC 24-50V (36V recommended)
Maximum Current: 4.2A
Output Phase Current: 1.0A-4.2A
Logic Input Current: 8-20mA (10mA recommended)
Step Pulse Response Frequency: 0-200KHz
Operating Temperature: 0℃ to +50℃
Features
1、Suitable for Nema 17, Nema 23, Nema34 stepper motor，and 2‑phase mixing stepper motors(outer diameter: 42, 57, 86mm)
2、This high subdivision driver is suitable for high subdivision motor. Suitable for 42,57,86 type 2‑phase 4‑phase (4‑wire, 6‑wire, 8‑wire) stepper motor
3、PWM current control guarantee the stable operation of motor, suitable for engraving machine, CNC, etc.
4、The product is made of high class materials of good quality, which possess stable working performance
5、The stepper motor driver have stable structure and high working efficiency, you can use with confidence
Package List
1 x Microstep Driver
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 1.56 Inch |
| Length | 5.46 Inch |
