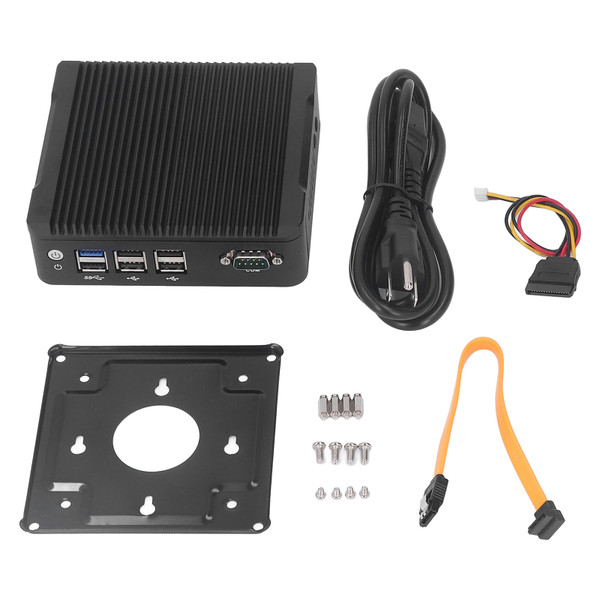

Mini Computer Embedded Fanless Low Consumption J1900 Fast Heat Dissipation Industrial PC for Automation DC12V US Plug 100-240V

Rating *

Name

Email *

Review Subject *

Comments *

$275.15

Shipping: Free Shipping

Product Overview

Item Type: Mini Computer
Material: ABS, aluminum alloy
Chassis Material: All aluminum, hard anodized surface
Processor: Onboard for Intel Celeron J1900 ( quad core quad thread, 2MB L2 cache, 1.99GHz,pulse frequency 2.42GHz)
Onboard for Intel Pentium N3540 ( quad core quad thread, 2MB L2 cache, 2.16GHz main frequency, 2.66GHz pulse frequency )
Chipset: J1900, N3540 (single chip)
Memory: Support 1 DDR3L1333/1600 MHz SODIMM memory slot, up to 8GB
BIOS: AMI UEFI BIOS
Display Chip: Integrated for Intel HD Graphics core graphics
Display Interface: 1 VGA, 1 HD Multifunctional Interface high definition display interface (supports synchronous, asynchronous dual display)
Front Panel: 1/O port 1 power switch, 1 USB3.0,5 USB2.0, 1 RS232 serial port
Rear Panel: 1/O port 1 audio interface, 2 RJ45 network ports, 1 VGA, 1 HD Multifunctional Interface HD display interface, 1 DC input interface
Support 1 MINI PCIE: slot (MSATA support)
Network Access: 2 x 10,100,1000MRTL8111E Gigabit Ethernet interfaces
Storage Interface: 1 x MSATA slot, 1 x 2.5in HDD bay
Other Functions: Power on, Timer power on, Network wake up, PXE boot, Watchdog (0-255 level)
Operating Temperature: 0-50℃(commercial HDD),-20℃-50℃(industrial SSD),surface air flow
Operating Humidity: 5%-95% non condensing
Safety Certification: CE, CCC, FCC Class A, ROHS
Application Areas: Industrial automation, medical, logistics and transportation, warehousing, electronic education, etc.

Features

1、FAST HEAT SINK: The industrial computer is designed with finely fitted heat sink teeth to ensure that the computer continues to run normally, effectively guaranteeing a longer life for the hardware.
2、HD INTERFACE: Computer hosts etc. output VGA signal to the converter and convert the output HD Multifunctional Interface signal to projection, display, large TV etc.
3、ALUMINUM ALLOY SHELLThe aluminum alloy shell can play a good role in dustproof, anti noise, shockproof and anti electromagnetic interference.
4、QUIET OPERATION: The fanless design of our IPCs allows for very quiet and noiseless operation and low power consumption.
5、APPLICATIONS: Industrial control machines are mainly used in industrial automation, medical, logistics and transport, warehousing, electronic education and other fields.
