Mini Industrial Control Motherboard for Intel H61 Thin‑ITX Computer Accessories LGA1155

Item Type: Mini Industrial Control Motherboard
Material: PCB
Chipset: For Intel H61
Compatible CPU: For Intel LGA1155 Pin 2 generation/3 generation CPU processor
Memory Support: 1 x DDR3 SO-DIMM slot (support 1.35V DDR3 1333/1600 MHz, maximum memory support 8GB)
Storage: 2 x MINI PCI Express slot (in line with PCI Express 2.0 standard, support WIFI&BT module and mSATA card, transmission speed can get 6Gbps)
Hard Disk Interface: 1 x SATA SSD / HDD (transfer speed up to 3Gbps)
Audio: Built-in for Realtek ALC661 HD audio controller, support high definition audio
Network: Built-in for Realtek 8111E network card (Gigabit network card chip)
BIOS: AMI 64Mb flash ROM
BIOS Chip Power Supply Type: 1 x CR2032 button battery (not included)
Power Support: 19V adapter
Size: Approx. 170 x 170mm / 6.7 x 6.7in
Rear Panel Interface:
1 x 19V DC
1 x HDMI
1 x VGA
4 x USB2.0
1 x RJ-45
1 x Line out (green)
1 x MIC (red)
Internal I/O Interface:
1 x LVDS (support dual channel 24BIT LCD display)
1 x INVERT (backlight interface/6pin)
5 x USB 2.0
1 x F_AUDIO (Front audio interface)
1 x SPK (speaker power amplifier interface)
1 x F_PANEL (front panel function button and indicator port/2 x 5pin)
2 x SATA
1 x 2.0 pitch 4Pin SAT-APWR (hard disk power supply interface)
1 x ATX19V
1 x 2.0 interval 9pin DEBUG pins
1 x 2.0 pitch 9pin COM pins
Fan Interface:
1 x CPU fan interface 4pin

Features

1、All solid‑state capacitors are thin and light board, strong heat dissipation, can effectively dissipate.
2、DOR3SO‑DIMM slot, maximum support 8GB, can be equipped with cost‑effective host.
3、Using H61 high‑speed chipset, good compatibility and high performance.
4、Wide range of application scenarios, which can be used in home, conference, education, monitoring, industrial control and other fields.
5、Built‑in for Realtek ALC661 HD audio controller, support high definition audio.

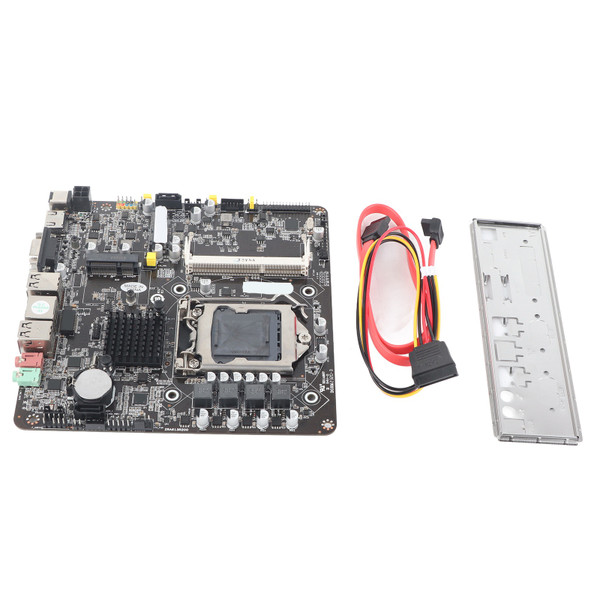

Package List

1 x Motherboard

1 x Hard Disk Data Cable

1 x Hard Disk Power Cord

1 x Cover
