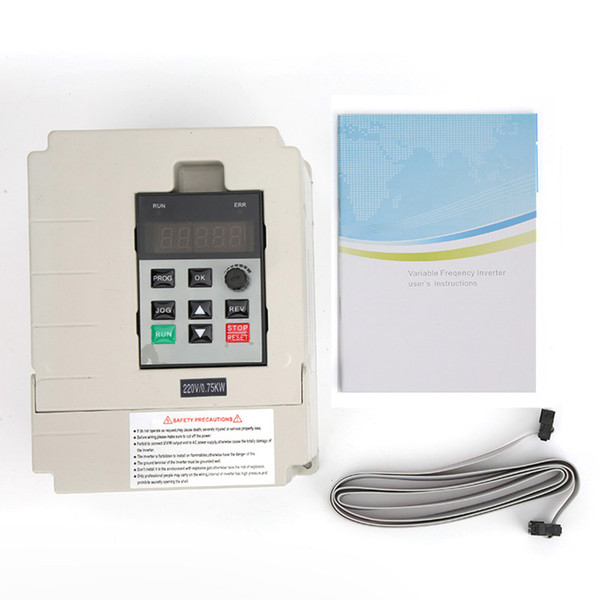

Mini Inverter Frequency Converter Single Phase Input 3 Phase Output White for Water Pump(0.75KW )

Item Type: Mini inverter
Model Series: JH-S2-2T
Rated Current: 4A / 8.2A / 12.2A (corresponding power)
Frequency Range: 0.01-400Hz
Scope of Application: General
Number of Power Phases: Single phase
Filter: Without filter
Control Mode: V / F open loop
Appearance: Plastic shell
Size: Approx. 160 x 120 x 95mm / 6.3 x 4.72 x 3.74in
Uses: Elevator industry, packaging industry, conveyor machinery, industrial production line, automotive industry, printing machinery, video machinery, textile machinery, office equipment, machine tool industry.
Connection Cable: Approx. 1m / 3.3ft

Features

1、Inverter can be connected with external controller with 0 ~ 5v / 0 ~ 10v analog voltage input and 0 ~ 20ma current signal input to realize stepless speed regulation control.
2、The inverter has quick start and stop response with large torsion at low speed. When the short circuit is shorted, it immediately stops to protect the host for short circuit protection.
3、Internal protection functions include under-voltage, over-voltage, over-current, over-heat and other protections.
4、Supports built-in temperature detection, such inverter supports independent heat dissipation function for lower requirements on the external environment.
5、And this kind of inverter comes with multi-function relay output, PID function, constant pressure water supply function.
