Product Overview
Features
1、Made of selected metal and ABS materials, this portable spot welding tool set features wear resistance and long service life.
2、Adopting reliable cold pressing technology for fastening, 26cm long line and 10cm long main body of the pen holder, this 10AWG multistrand silicone wire features high temperature resistant & flexible & durable.
3、Made of pure copper, the φ2mm integrated electric welding pins feature fine conductivity and low contact resistance.

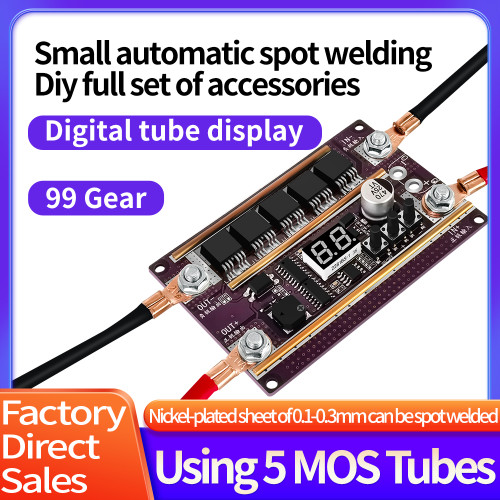

4、It is precisely controlled by single chip microcomputer program and then outputs through MOS tubes. There is no need to trigger the switch during use, which is labor-saving, easy to use and easy to carry.
5、Equipped with 3.7V~4.2V 5000mAh battery, the discharge rate can reach 65C, and the output capacity is about 300A, convenient charging & stable performance.
6、With the built-in charging control module, it supports charging the battery through the USB port.
7、Mainly used for the welding of nickel sheets (0.1mm~0.15mm) of cylindrical battery, NI-MH battery, nickel cadmium battery and so on.
Package Weight and Dimension
| Weight | 1.02 lb |
| Width | 2.73 Inch |
| Height | 1.56 Inch |
| Length | 8.19 Inch |
