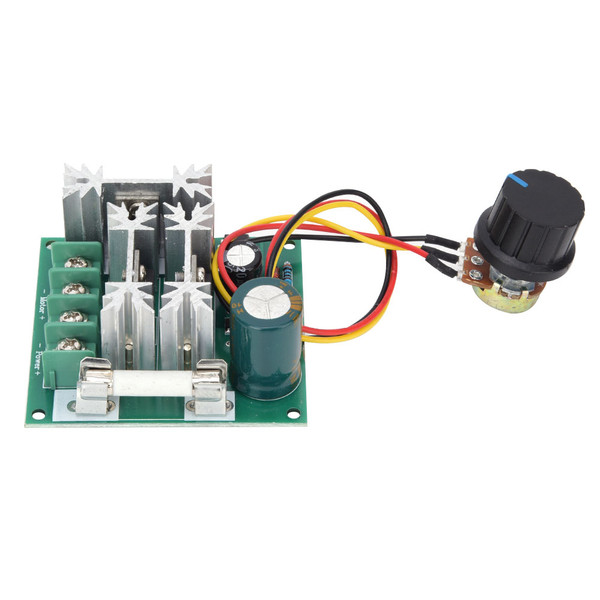

Product Overview
Item Type:DC Motor Speed ControllerWorking Voltage: DC6V-DC90V
Control Power : 0.01-1000W (Maximum current 15A, rated 5A)
Quiescent Current: 0.005A (Standby State)
PWM Duty Cycle: 0%-100%
PWM Frequency: 15khzSize:6.4 x 6 x 3cm / 2.52 x 2.36 x 1.18in
Net Weight: 75 g / 2.65 oz(approx.)
Control Power : 0.01-1000W (Maximum current 15A, rated 5A)
Quiescent Current: 0.005A (Standby State)
PWM Duty Cycle: 0%-100%
PWM Frequency: 15khzSize:6.4 x 6 x 3cm / 2.52 x 2.36 x 1.18in
Net Weight: 75 g / 2.65 oz(approx.)
Features
1、Ultra-wide working voltage from 6~90VDC to support different working situations.
2、The control power range from 0.01~1000W and the rated current is 5A.
3、Self-contained reverse power protection, control voltage overvoltage protection, 15A fast-blow ceramic fuse. It can be directly controlled by PLC voltage.
4、The board equipped with a potentiometer for speed controlling.
5、The governor can control the rotation speed of the motor steplessly from 0%-100% infinite change, the technology is extremely advanced, the efficiency is high, the torsion is large, the heat is small,has been widely used in industrial production.
Package List
1 x Motor Speed Controller
1 x Potentiometer
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 1.17 Inch |
| Length | 2.34 Inch |
