Product Overview

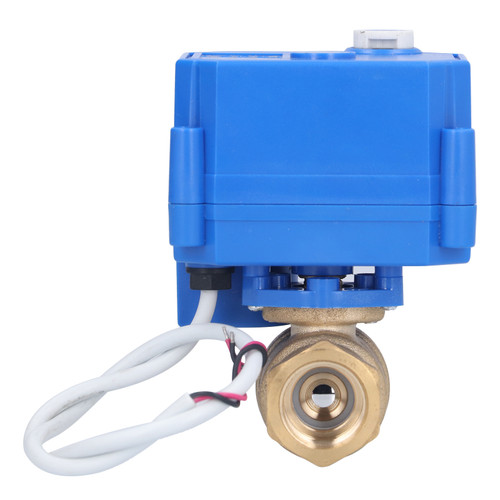

Item Type: Motorized Ball Valve
Material: Brass, ABS
Power Supply: DC 12-24V
Interface Size: DN15
Power: 6-20W
Motor Torsion: 6N.M
Motor Type: Synchronous motor
Action Time: 6-15s
Working Pressure: 1.6Mpa
Semi Closed Pressure Difference: <0.2Mpa
Connection Method: Pipe thread 1/2in
Medium Temperature: -10℃ to 100℃
Applicable Medium: Cold or hot water or 50% glycol solution
Protection Level: IP54
Material: Brass, ABS
Power Supply: DC 12-24V
Interface Size: DN15
Power: 6-20W
Motor Torsion: 6N.M
Motor Type: Synchronous motor
Action Time: 6-15s
Working Pressure: 1.6Mpa
Semi Closed Pressure Difference: <0.2Mpa
Connection Method: Pipe thread 1/2in
Medium Temperature: -10℃ to 100℃
Applicable Medium: Cold or hot water or 50% glycol solution
Protection Level: IP54
Features
1、Normally Closed: This is 2 wire 2 way motorized ball valve, adopts normally closed type, power will be cut off after opening the valve.
2、Standard Thread: The ball valve is manufactured and measured according to national pipe thread standards, with standard 1/2in thread.
3、IP54 Protection Level: The electric ball valve protection level is IP54, resistant to dust and proof, can be used with confidence.
4、2 Wire Installation: The ball valve can be easily and quickly installed with 2 wire, just connect the blue to the live wire, yellow to the neutral wire.
5、Brass and ABS Material: Adopt brass body and ABS housing, has high strength, good wear resistance, not easy to damage, has long service life.
Package List
1 x Motorized Ball Valve
Package Weight and Dimension
| Weight | 1.04 lb |
| Width | 4.29 Inch |
| Height | 3.12 Inch |
| Length | 5.85 Inch |
