Product Overview
Specification:
Model: MRI-24D48
Input Voltage Range:24VDC±20%
Input Current: 7mA
Output Voltage Range: 3-48VDC
Transfer Frequency:300Hz
Switch Electrical Level: "1" signal (H) ≥80,"0" signal (L) ≤40%
Max.Sustained current: 100mA
Max. Voltage Drop:≤0.9V
Input/Output Isolation Voltage: 2.5kV(50Hz,1min)
Ambient Temperature: -20℃~60℃
Operative Standard: IEC60664,EN50178, IEC62103
Applicable Wire: (Rigidity)0.2-2.5mm2,(Flexibility)0.2-2.5mm2,(AWG)24-14
Weight: Approx.31g/1.1oz
Package list:

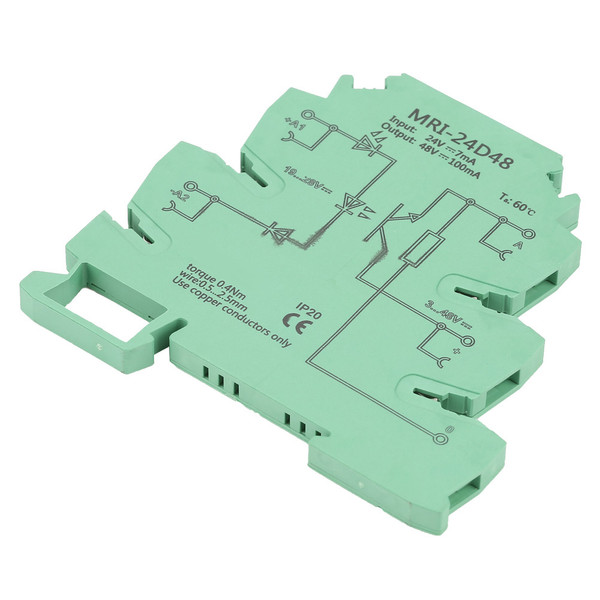

1 x Optocoupler Isolating PLC Relay
Model: MRI-24D48
Input Voltage Range:24VDC±20%
Input Current: 7mA
Output Voltage Range: 3-48VDC
Transfer Frequency:300Hz
Switch Electrical Level: "1" signal (H) ≥80,"0" signal (L) ≤40%
Max.Sustained current: 100mA
Max. Voltage Drop:≤0.9V
Input/Output Isolation Voltage: 2.5kV(50Hz,1min)
Ambient Temperature: -20℃~60℃
Operative Standard: IEC60664,EN50178, IEC62103
Applicable Wire: (Rigidity)0.2-2.5mm2,(Flexibility)0.2-2.5mm2,(AWG)24-14
Weight: Approx.31g/1.1oz
Package list:
1 x Optocoupler Isolating PLC Relay
Features
1、Yellow LED indication, clear port mark
2、The width is only 6.2mm,which saves 60% of installation space
3、Plug-in bridging type.Convenient DIN rail installation
4、Operational frequency can reach to 300Hz.No-abrasion switch output :3-48V DC/100mA
5、Internal input/output polarity protection circuit.The max electrical isolation is 2.5kVrms
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 0.39 Inch |
| Length | 3.51 Inch |
