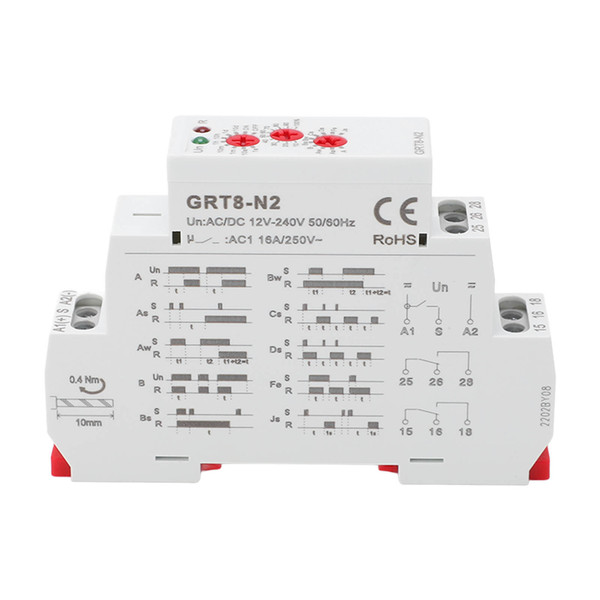

Multifunctional Time Relay LED Indicator Rail Mounting Flame Retardant Delay Relay C for Industry

Item Type: Multifunctional Time Relay
Material: ABS
Power Consumption: AC 0.09-3VA , DC 0.05-1.7W
Delay Range: Adjustable from 0.1 seconds to 10 days
Setting Accuracy: 10%
Working Temperature: -20℃-55℃
Mechanical Life: 10 million times
Electrical Life: 100000 times

Features

1、ADJUSTABLE DELAY TIME: The delay time range of the relay can be adjusted according to your needs, and the adjustment range is from 0.1 s to 10 days.
2、FLAME RETARDANT SHELL: The shell made of ABS has good flame retardancy, no particles fall off in the combustion test, and the afterflame is quickly extinguished.
3、LED INDICATOR: There are power indicator lights and action indicator lights on the relay, with an alarm function, and the status of the relay is clear at a glance.
4、RAIL MOUNTING: The relay adopts the method of rail installation, which is simple and convenient, and can be used quickly after you get it.
5、Wide Voltage Range: This relay is available for DC or AC circuits, and circuits with a voltage range of 12-240V can be connected to this relay.

Package List

1 x Multifunctional Time Relay

1 x Instruction
