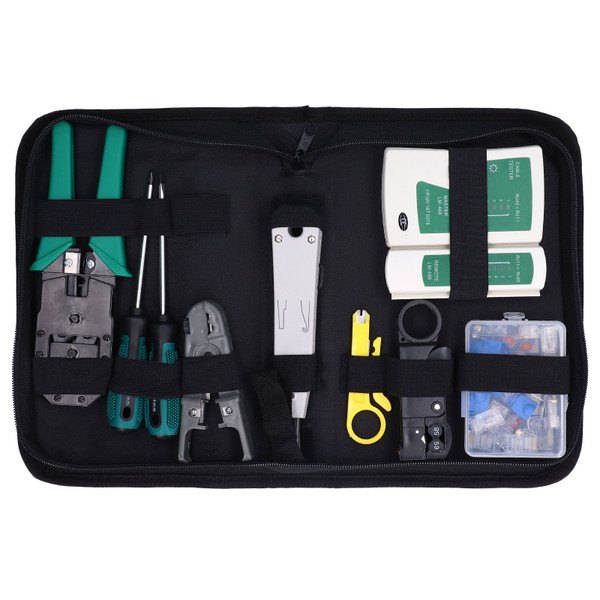

Network Cable Tool Wire Cutter Stripper Pliers Repair Maintenance Set Kit for Testing

Item Type: Network Cable Tool
Material: Steel + PP + ABS
Model: 2KT-2172
Tester Battery: 1 x 9V dry battery (without battery).
Application Scope of Wire Cutter: For telephone line, network cable, monitoring line.
Application Scope of Coaxial Wire Stripping Pliers: For coaxial cable RG58/RG59/RG62/RG3C/RG4C.
Application Scope of Network Wire Stripping Pliers: For round wire (UTP&STP), flat wire and multiple transmission lines 3.2 ~ 9.0mm / 0.13 ~ 0.35in(approx.).
How to Use:
1. Test the twisted pair 1, 2, 3, 4, 5, 6, 7, 8, and G wire pairs one by one (pair), and can distinguish which one (pair) is wrong, short circuit and open circuit.
2. Switch ON is the normal test speed, S is the slow test speed, and M is the manual gear.
3. Twisted Pair Test: Turn on the power, insert the network cable plugs into the main tester and remote tester respectively, and the indicator lights of the host will flash from 1 to G one by one, as follows:
Main Tester: 1-2-3-4-5-6-7-8-G
Remote Tester: 1-2-3-4-5-6-7-8-G (RJ45)
1-2-3-4-5-6------(RJ12)
1-2-3-4----------(RJ11)
If the wiring is not normal, it will be displayed as follows:
A. When a network cable such as line 3 is disconnected, the main tester and remote test terminal 3 lights will not light up.
B. When several lines are unavailable, several lines will not light up. When the network cable is less than 2 lines connected, the lights will not light up.
C. When the two ends of the network cables are out of order, for example 2, 4 wires are out of order, the display is as follows:
The Main Tester Remains Unchanged:
1-2-3-4-5-6-7-8-G
The Remote Test Terminal is:
1-4-3-2-5-6-7-8-G
D. When two network cables are short circuited, the main tester does not light up, and the two cables that are short circuited at the remote test terminal are both lit slightly. If there are more than three (including three) short circuited, all the short circuited cables The lights of all line numbers are not on.

Features

1、Various Tools: Has various tools, including network cable pliers, wire cutter, line stripper, network tester, etc.
2、Practical Use: Enables flexible application on network testing, telephone line stripping, cable connecting and so on.
3、Simpler Using: All the tools has light weight and compact size, simplifying the operation and improving efficiency.
4、Accurate Work: Ensuring high accuracy in your work, so there is small error in connection and repair, very reliable.
5、Easy Carrying: Comes with storage bag and storage box, the neatly stored tools are very convenient to carry.

Package List

1 x 3 Purpose Network Cable Pliers

1 x Wire Cutter

1 x Wire Stripper

1 x Network Tester

1 x Coaxial Cable Stripper

1 x Network Cable Stripper

1 x Cross Screwdriver

1 x Slot Screwdriver

10 x Cat5 RJ Connector

5 x 6P RJ Connector

5 x Blue Sheath

5 x K1 Connector

1 x Storage Box

1 x Storage Bag

1 x User Manual
