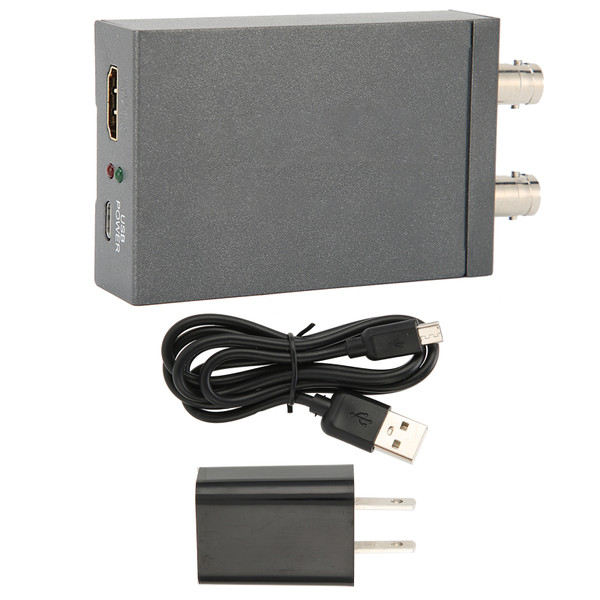

NKM009 HD Multimedia Interface to SDI Converter HD to SDI Converter

Item Type: HD Multimedia Interface to SDI Converter
Material: Iron
Color: Black
Model: NK-M009
Input port: HD Multimedia Interface Input
Output port: 2 x SDI Output
Input HD Multimedia Interface Format:
480i, 480P, 576i, 576P, 720P at 50/60Hz, 1080i at 50/60Hz, 1080P at 24/25/30/50/60Hz
800x600P at 60Hz, 1024x768P at 60Hz
1280x800P at 60Hz, 1280x960P at 60Hz, 1360x768P at 60Hz
1400x1050P at 60Hz, 1440x900P at 60Hz, 1600x1200P at 60Hz, 1680x1050P at 60Hz
Output SDI Format: 720P at 50/60Hz, 1080P at 24/25/30/50/60Hz
Power Output: DC5V 1000mA

Features

1、HD Multimedia Interface input resolution supports 4801, 480P, 5761, 576P, 720P at 50/60Hz, 1080P at 50/60Hz, 1080p at 24/25/30/50/60Hz.
2、SDI output supports 720P at 50/60Hz, 1080P at 2425/30Hz, HD‑SDI signal 1080P at 50/60Hz, 3G‑SDI signal.
3、HD Multimedia Interface video input is HD Multimedia Interface A, which converts high‑definition HD Multimedia Interface signal into SDI signal.
4、The converter supports a maximum SDI output distance of 100 meters (3G‑SDI) and a maximum of 200 meters(HD-SDI).
5、It supports HD Multimedia Interface1.3, HDCP1.3, and the built‑in ESD protection circuit can effectively prevent electrostatic damage.

Package List

1 x Converter

1 x Power Plug

1 x Power Cable

1 x Manual
