Optical Fiber Power Meter Portable 4 in 1 Digital Rechargeable ‑70‑+10dBm Fiber Tester for Communication Engineering

Item Type: Optical Fiber Power Meter
Material: ABS
Wavelength Range: 800-1700nm
Optical Connector: Universal connector (SC/FC/ST)
Connector Type: InGaAs
Power Measurement Range: -70-+10dBm
Measurement Accuracy Error: <±5%
Standard Wavelength: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm
Display Resolution: Linear display 0.1%, logarithmic display 0.1dBm
Identifiable Frequency: 270Hz, 300Hz, 1kHz, 2kHz
Power Supply: Lithium battery 3.7V capacity 700mah (built in)
Interface: Micro USB
Battery Duration: Greater than or equal to 120 hours (optical power meter function)
Automatic Power Off Time: 10min
Red Source Function:
Working Wavelength: 650nm±30nm
Working Mode: CW, 1Hz, 2Hz

Features

1、Fast and Accurate: The multifunctional optical power meter has a built in sensitive chip for accurate measurement results and quick response.
2、Strong Functions: Multifunctional optical power meter with relative power calculation and calibration function, stable performance.
3、10 Wavelengths: Can measure 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm wavelengths, covering most of the needs of communications engineering maintenance.
4、Clear Display: The power meter's clear on screen display allows you to take clear readings, both in low and bright light.
5、Automatic Power Off: This optical power meter will automatically shut down after 10 minutes of no operation, reducing power consumption and extending service life.

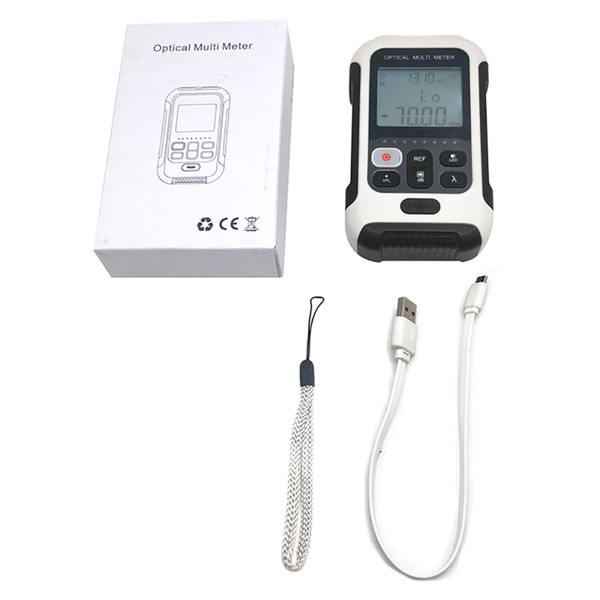

Package List

1 x Optical Fiber Power Meter

1 x USB Cable

1 x Instruction

1 x Lanyard
