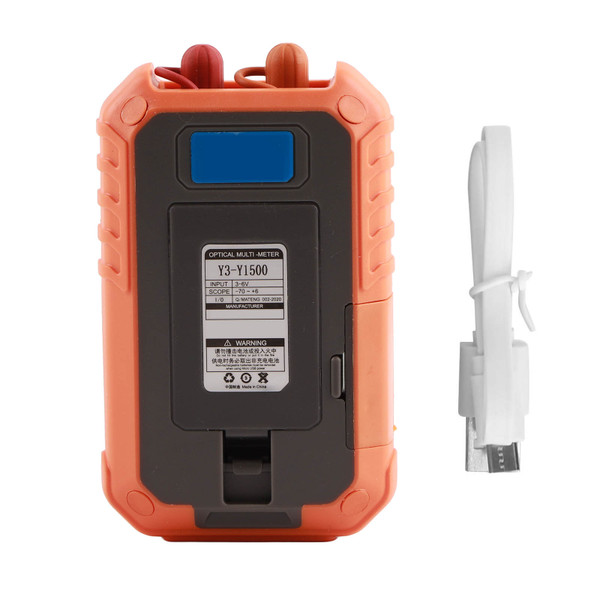

Optical Power Meter Mini Fiber Light Attenuation Tester Red‑Light All‑in‑One Wavelength Memory

Item Type: Optical power meter
Material: Engineering plastic
Wavelength Range: 800-1700nm
Input Voltage: DC3-6V
Connector: FC/SC/ST
Detector Type: InGaAs
Measuring Range: -70 to +6 db
Uncertainty: ±5%
Standard Wavelength (nm): 850nm, 1300nm, 1310nm, 1490, 1550, 1625nm
Display Resolution:
Linear Display: 0.1%
Logarithmic Display: 0.01dBm
Working Temperature (℃): -10 to +60
Storage Temperature (℃): -25 to +70
Automatic Shutdown Time: (Min) 10
Battery Model: SGA3-00042
Battery Type: Lithium battery
Battery Capacity: 600mAh

Features

1、Wavelength set before shutdown can be remembered by optical power meter's wavelength memory function after shutdown.
2、Used to determine the light emitting mode during the project construction process whether it is continuous / intermittent, such light source meter can accurately identify the optical fiber transmission frequency.
3、Plastic shell keeps protection to the meter, which reduces the damage to the machine caused by collision and accidental fall to a certain extent.
4、After switching the wavelength, the wavelength before and after the startup is unchanged.
5、Fiber testing tool keeps simple and convenient operation with stable and reliable performance.

Package List
