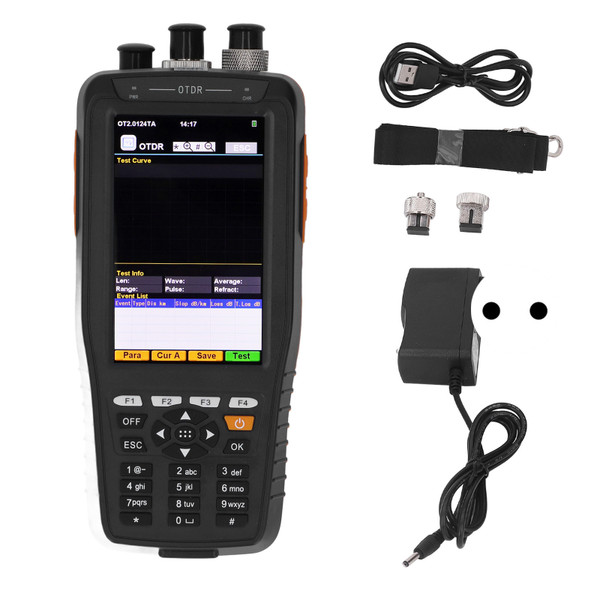

Product Overview
Mode: AUA28U
Joint Type: UPC
OPM:-70 to +10dBm
Material: ABS
Wavelength: 1550nm (20dB)
Dynamic Range: 20dB
Measuring Distance: Approx. 0 to 60000m / 0 to 196850.39ft
Fiber Optic Connector Type: 9/125 μ m SM
Unit: tester, inch, mile
Reflection Blind Area: Approx. 2m / 6.6ft
Data Storage: 200 groups
Display: 3.97 inch
Resolution: 800 x 480pixels IPS screen (touchable screen)
Power Supply: 7.4V 4400mAh lithium ion battery (shipped with built in battery) can be used for more than 5000 times
Visual Fault Locator
Wavelength: 650nm
Output Power: Greater than or equal to 10mW
Mode: CW, 1Hz, 2Hz
Optical Fiber Type: SM, MM
Optical Power tester
Measuring Range: - 70 to +10dBm
Wavelength Range: 800 to 1650nm
Calibration Wavelength: 850, 1300, 1310, 1490, 1550, 1625
Detection Type: InGaAs
Features
1、Main Application: This tester is used to evaluate FTTx and access network construction and maintenance, identify optical fiber breakpoints, measure optical cable length, and calculate relative optical power loss.
2、USB Port: This tester is equipped with an USB data interface, convenient for data transmission, analysis and processing.
3、Color Screen: Equipped with a 3.97in color screen, you can easily and clearly monitor the data and make accurate judgements.
4、Easy Carrying: Comes with small size and lightweight, you can easily take this tester with you to help with your work.
5、Data Storage: The data can be stored by this tester, and you can browse the past detection data for analysis at any time.
Package List
1 x Optical Time Domain Reflectometer
3 x User Manual
1 x Cleaning Swab Pack
1 x CD
1 x Lanyard
1 x SC Connector
1 x FC Connector
1 x USB Cable
1 x Power Cord
1 x Storage Bag
Package Weight and Dimension
| Weight | 1.87 lb |
| Width | 7.02 Inch |
| Height | 3.51 Inch |
| Length | 8.58 Inch |
