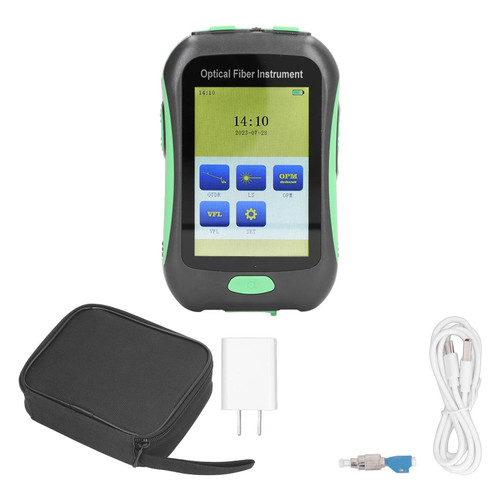

Optical Time Domain Reflectometer OTDR 5 in 1 Optical Power Meter Red Light Source VFL Tester Tool US Plug 100-240V

Item Type: Optical Time Domain Reflectometer
Model: AUA-18U
Port: UPC
Material: ABS
Stable Light Source Connector: SC PC
Optical Power Meter Connector: SC FC ST
Stable Light Source: 1550nm
OTDR: 0-60km
Optical Power Meter: 7 wavelengths of 850, 1300, 1310, 1490, 1550, 1625 and 1650.
Lighting: LED Light
Dust Proof Interface: SC interface for OTDR, 2.5mm interface for OPM PFL.
Display: 3.5in touchscreen display.
Power Supply: Built in 3.7V 2200mah polymer lithium battery.
Five Functions: Optical time domain reflectometer, optical power meter, stable light source, red light fault location, LED light.

Features

1、5 in 1 Design: Can be used as optical time domain reflectometer, optical power meter, stable light source, red light fault location and LED light.
2、Simple Operation: Equipped with 3.5in display touchscreen, the optical time domain reflectometer OTDR is very simple to operation for testing and measurement.
3、Smart Testing: Used to evaluate FTTx and access network construction and maintenance, identify fiber optic break points, measure fiber optic cable length, and calculate relative optical power loss.
4、Wide in Range: OTDR optical time domain reflectometer can measure a wide range of fiber optic networks, including long distance fiber optic networks and distributed fiber optic sensing networks.
5、Easy Carrying: Comes with a compact size and a light weight as well, the OTDR is very convenient to carry for both indoor and outdoor use.

Package List

1 x Optical Time Domain Reflectometer

1 x User Manual

1 x Plug

1 x USB Cable

1 x Disc

1 x Storage Box
