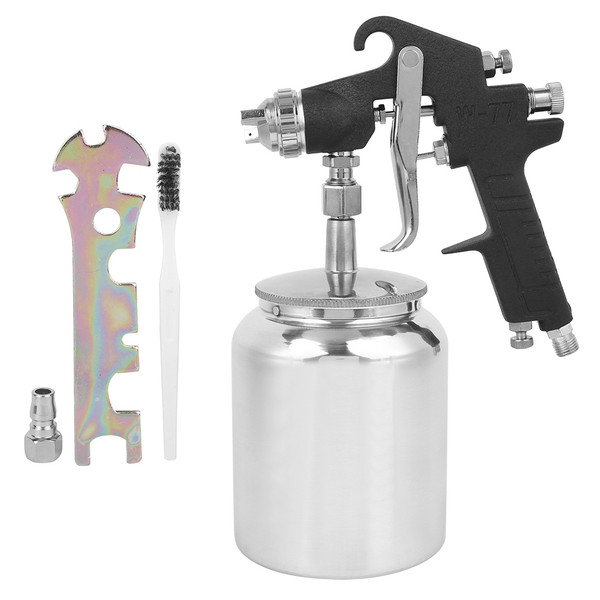

Paint Sprayer Pneumatic Airbrush Black 2.5mm Lower High Atomization Spray Can for Automotive

Item Type: Paint sprayer
Model: W-77-2s
Material: Stainless steel + black diamond
Capacity: 400ml
Paint Supply Method: Siphon type
Working Pressure: 0.25-0.4 (Mpa)
Diameter of Spray Hole: Approx. 2.5mm / 0.1in
Air Connector Size: Approx.1.1cm / (1/4 inch)
Paint Spraying Volume: 435 (≥ml/min)
Effective Spray Distance: 20cm
Air Consumption: 5-10 (l/min)
Scope of Application: Latex paint, primer and upper coat spraying
Instructions:
1. Pour the paint with a good proportion into the painting pot and connect it with the feed joint
2. Connect the compressed air to the air inlet connector
3. Pull the trigger and adjust the proper working air pressure (3.5-4.5bar)
4. Adjust the amount of paint and spray width (adjust as needed)
5. Parallel and vertical spray on cleaning surface (spray distance is about 20cm)
Difference Between Upper and Lower Pots:
1. The lower pot S is suitable for spraying horizontally or less than 45° up and down.
2. The upper pot G can be rotated, suitable for 360-degree spraying
3. The lower pot capacity is large, and the upper pot capacity is small according to the usage places.

Features

1、Via advanced equipment manufacturing, such paint sprayer keeps high degree of atomization with low energy consumption.
2、High efficiency airbrush keeps easy maintenance. while sprayer is made of black diamond material, which is sturdy and durable and the frosted style has an excellent grasping feeling.
3、The nozzle is made of wear‑resistant, corrosion‑resistant, high‑strength stainless steel.
4、And the nozzle can be removed for cleaning and maintenance, meanwhile, the most suitable spraying distance is about 200mm.
5、Suitable for a variety of different applications, such as automotive, industrial, marine and wood work.
