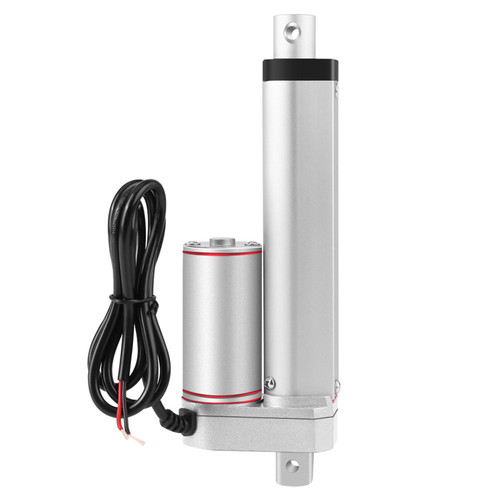

Pen Type Electric Actuator High Speed DC Motor Drive Linear Actuator with Bracket Stroke 100mm 12V

Item Type: Electric Actuator
Material: Aluminum Alloy
Maximum Force: 100N
Stroke: Approx. 100mm / 3.9in
Mounting Hole Diameter: Approx. 5mm / 0.2in
No Load Speed: 10mm/s
Load Speed: 6mm/s
Protection Class: IP65
Working Cycle: 10%, work for 2 minutes, stop for 18 minutes
Application: Suitable for electric medical bed, electric lift bed, electric lift table, electric reclining chair and other electric actuator equipment

Features

1、PORTABLE DESIGN: Pen type miniature electric actuator, portable design for easy operation, which can provide high speed and stable movement.
2、SAFE OPERATION: With built in limit switch, the electric motion actuator will automatically stop when it reaches the end point, ensuring safe operation.
3、GOOD PERFORMANCE: The planetary gear reduction transmission structure is selected, which greatly improves the wear resistance, durability and stability.
4、HIGH EFFICIENCY: The no load speed of the linear actuator is 10mm/s, with 100mm stroke, and it works for 2 minutes and stops for 18 minutes.
5、WIDE APPLICATION: Equipped with brackets for electric medical beds, electric lift beds, electric lift tables, electric reclining chairs and other equipment.

Package List

1 x Electric Actuator

2 x Bracket
