Phone Charger Holder QC3.0 USB+Wireless Fast Charging DC1224V Universal for Motorcycle

Item Type: Motorcycle Mobile Phone Holder
Material: Aluminium Alloy + Stainless Steel
Color: Black
Input Voltage: 12-24V
Output Power: Wireless Charging 10W USB Port QC3.0 (5V 3A / 9V 2A / 12V 1.5A)
Working Frequency: 125 KHz
Waterproof Rating: IP65
Standby Current: 2 mA
Wireless Charging Distance: ≦8mm
Overheating Protection Temperature: 60 ℃
Product Compatibility: Compatible with Wireless Charging Mobile Phones
Ball Diameter: Approx. 24mm/1in
Applicable Diameter of Lens Holder: Approx. 0.9-1.1cm/0.35-0.43in
Applicable Diameter of Handlebar: Approx. 1.2-3.2cm/0.5-1.3in
Applicable Mobile Phone Size: 4.7-6.5 Inches (thickness Less Than 12mm/0.5in)
Fitment: Motorcycles, Scooters, Atvs, Tricycles, Electric Vehicles Below 24V
Light Description:
1. When the switch is turned on the first gear, the mobile phone is wirelessly charged. The red indicator light is on to indicate standby charging; The blue indicator light in breathing mode indicates wireless charging.
2. When the second gear is turned on for charging, the blue indicator light is always on;
3. When the middle gear is turned on, the charging is turned off.
Wiring Instructions:
Red Wire to Positive
Black Wire to Negative

Features

1、Support 10W wireless charging, USB (QC3.0) wired fast charging to meet more needs of customers.
2、The stand has a waterproof independent switch, which can control wired and wireless charging separately and switch the charging mode freely.
3、The bracket has a one‑key telescopic function, easy to pick and place, convenient and quick to operate, and safer during riding.
4、Satisfy your needs during riding, such as enjoying music easily, navigating and guiding the way, charging at any time.
5、Handlebar installation and rear-view mirror installation are two ways to meet the needs of more models.
6、Equipped with a 135cm power cord, which can be installed on any power line of the motorcycle to fully meet any installation requirements.
7、The installation accessories are made of aluminum alloy, which is more durable, corrosion-resistant and will not rust.

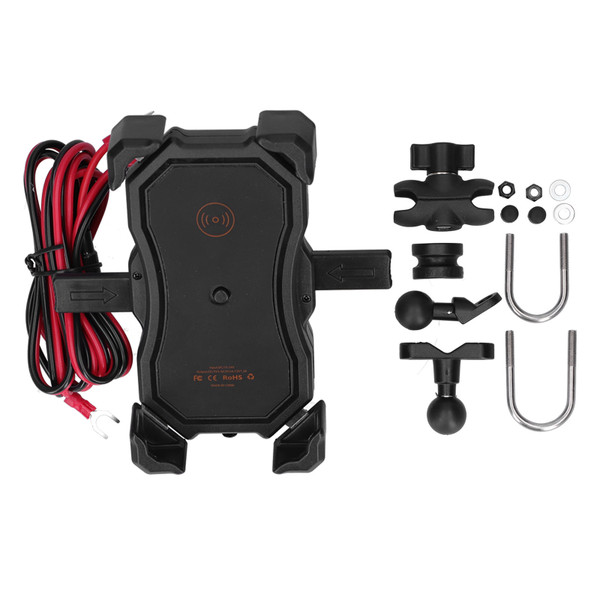

Package List

1 x Motorcycle Mobile Phone Holder

1 x Ball Joint

1 x Mirror Holder Fixing Bracket

2 x U-Shaped Bracket

1 x T Bracket

2 x Nut

2 x Screw Cap

1 x Base Bracket

2 x Screw Washer
