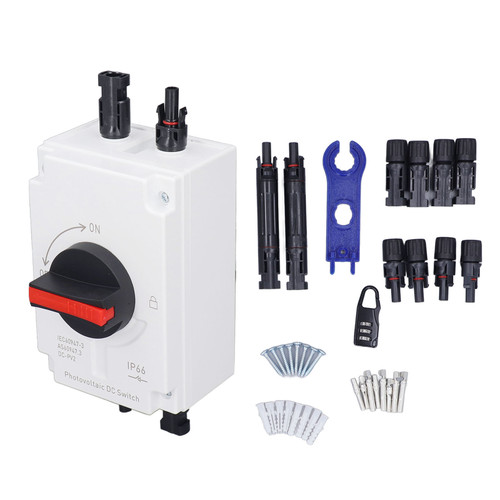

Photovoltaic DC Isolator Solar Switch IP66 Waterproof Insulated Switch for Solar Powered RV 1500V DC 32A 4P

Item Type: Photovoltaic DC Switch
Material: PC
Number of Poles: 4P
Maximum Rated Voltage: 1500V
Maximum Insulation Voltage: 1500V
Rated Current: 32A
Waterproof Grade: IP66
Standard: IEC60947 3
Ambient Temperature: -25℃ to +85℃
Insulation Voltage: DC1500V
Connection Method: M20, M25

Features

1、Scope of Application: DC switch is used to switch off all poles of the solar module. It is installed on the string line between the module and the grid inverter or charge controller.
2、Compact Size: Comes with a compact size, this switch is suitable for places with limited space. The applicable area is larger.
3、Powerful Function: This switch has a load breaking up to 8 times the rated current, making it ideal for motor isolation.
4、PC Material: Made of PC material, this switch is flame retardant, possesses premium insulation, heat resistance, acid and alkali resistance.
5、Wide Application: This switch is widely used for solar power systems for RVs, boats and off grid, on grid solar systems.

Package List

1 x Switch

4 x Screw

4 x Expansion Tube

16 x Connector Accessory(4 Set)

1 x Wrench
