Product Overview

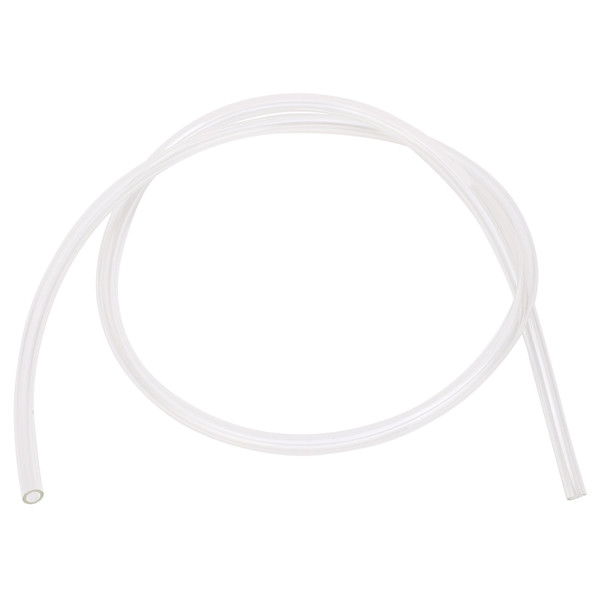

Item Type: Pneumatic Hose
Material: TPU
Uses: Woodworking industry, auto repair factory, decoration painting, automated factory
Specification(outer diameter x inner diameter): OD4xID2.5(approx. 4 x 2.5mm / 0.2 x 0.1in)
Length: Approx. 1meter / 3.3ft
3meter / 9.8ft
5meter / 16.4ft
10meter / 32.8ft
Burst Pressure (20℃): 30kgf/cm²
Working Pressure: 12bar
Temperature Range: -10℃~60℃
Diameter Tolerance: ±0.05mm
Abrasion Strength: 30mg~40mg
Material: TPU
Uses: Woodworking industry, auto repair factory, decoration painting, automated factory
Specification(outer diameter x inner diameter): OD4xID2.5(approx. 4 x 2.5mm / 0.2 x 0.1in)
Length: Approx. 1meter / 3.3ft
3meter / 9.8ft
5meter / 16.4ft
10meter / 32.8ft
Burst Pressure (20℃): 30kgf/cm²
Working Pressure: 12bar
Temperature Range: -10℃~60℃
Diameter Tolerance: ±0.05mm
Abrasion Strength: 30mg~40mg
Features
1、Pneumatic hose come with thick pipe wall, high roundness, pressure and explosion-proof
2、Made of pure materials, possess good flexibility, excellent performance, suitable for a variety of complex environments
3、The air pipe will not be deformed under external force bending, and will be folded in half for many times without crease
4、Smooth and translucent surface, possess corrosion resistance, high pressure resistance, long life
5、Ensure that the force is uniform, the normal working pressure is 12kg, and the instantaneous burst pressure is 30kg
Package List
1 x Pneumatic Hose
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 11.7 Inch |
| Height | 1.95 Inch |
| Length | 11.7 Inch |
