Product Overview
Material: Aluminum alloy

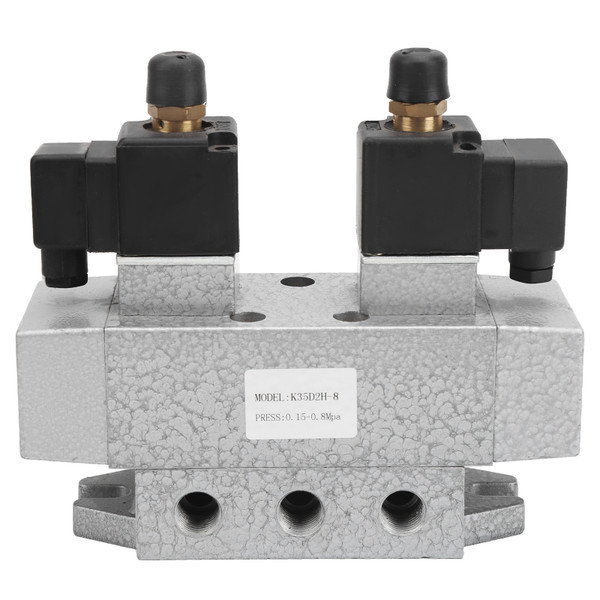

Model: K35D2H-8
Interface Diameter: G1/4in
Pressure:0.2～0.8mpa
Reversing Time: ≤0.06s
Maximum Allowable Commutation Frequency: 8Hz
Drain Flow: 50cm³/min
Ambient Temperature: -5--50℃
Medium Temperature: -5--50℃
Life: ≥1500 thousand times
How to Use:
1. Engraved with "P" in the product is the intake cavity, "A", "B" are the working cavity, and "O1" and "O2" are the exhaust cavity.
2. The control power cord is connected to the junction box of the coil.
3. During debugging or power failure, manual operation can be used (manual switch "0" position is off, "1" position is on).
4. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed.
5. Suitable to disassemble and wash or add some lubricating oil if it has been stored for a long time or used for a long time or is not responsive.
Features
1、The spacer‑type spool valve structure adopted is very reliable in performance.
2、In the structural design of the solenoid valve, there is an automatic compensation function for sealing wear.
3、Can meet the needs of large flow media to pass, and has a larger flow capacity.
4、The structure is compact, and the base plate also uses a take‑over structure, which makes installation and maintenance work more convenient.
5、Divided into 2‑position 5‑way and 3‑position 5‑way in function subdivision, in terms of control mode, is divided into single and double air control and single and double air control introduced from the bottom plate.
6、Another point is very important, the solenoid valve has a long service life while having strong performance.
Package List
1 x Pneumatic Solenoid Valve
1 x User Manual
Package Weight and Dimension
| Weight | 2.42 lb |
| Width | 5.46 Inch |
| Height | 2.34 Inch |
| Length | 6.24 Inch |
