Product Overview
Condition: 100% Brand New

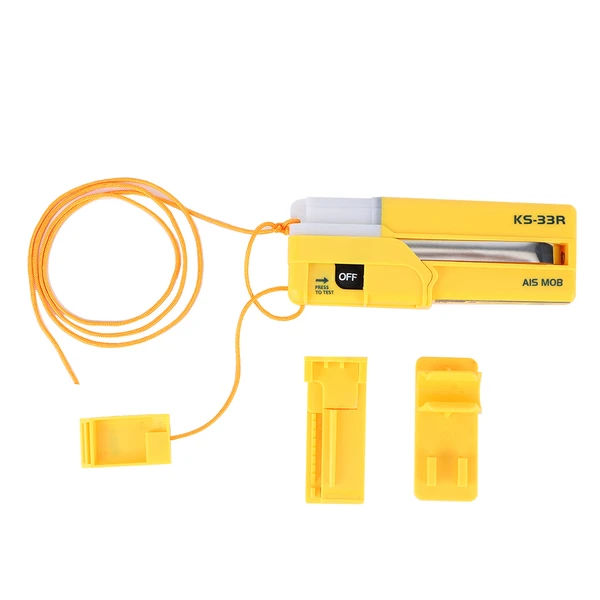

Item Type: Personal Locator
Material: Plastic
Color: As picture shown
Technical Index:
Compliance with Standards: EC 61097 -14, 60945 (environment/EMC), 61108 Part 1, ITU –RM, 1371
Sealing Depth: Immersion 5m (16.4ft)
Operating Temperature: -20℃ to +55℃ (-4 to +131℉)
Storage Temperature: -30℃ to +70℃ (-22 to +158℉)
Battery Type: Lithium Manganese (Bulit-in)
Transmission Time: 24 Hours
Battery Life (Storage): 7 Years
Power: 800mah
Frequency: 161.975 & 162.025mhz
Power: 2W
AlS Message Sent: Message 1 (UID, GPS Location, SOG, COG, UTC)
Message 14 (MOB Activity or MOB Test)
First Transmission: 15 Seconds Later (no Gps)
Range: the Typical Value is 4nm, and the AIS Receiving Antenna is Above 5m Above Sea Level
Unique Id Number: Factory Programming
GPS Type: 50 Channels, Ceramic Patch Antenna
GPS Location Update; Every Minute
Size(DxWxL): Approx. 24 x 50 x 130mm (0.93 x 1.96 x 5.08in)
Standard Compass Safety Distance: 0.1-10 at 30cm/1ft
Item Type: Personal Locator
Material: Plastic
Color: As picture shown
Technical Index:
Compliance with Standards: EC 61097 -14, 60945 (environment/EMC), 61108 Part 1, ITU –RM, 1371
Sealing Depth: Immersion 5m (16.4ft)
Operating Temperature: -20℃ to +55℃ (-4 to +131℉)
Storage Temperature: -30℃ to +70℃ (-22 to +158℉)
Battery Type: Lithium Manganese (Bulit-in)
Transmission Time: 24 Hours
Battery Life (Storage): 7 Years
Power: 800mah
Frequency: 161.975 & 162.025mhz
Power: 2W
AlS Message Sent: Message 1 (UID, GPS Location, SOG, COG, UTC)
Message 14 (MOB Activity or MOB Test)
First Transmission: 15 Seconds Later (no Gps)
Range: the Typical Value is 4nm, and the AIS Receiving Antenna is Above 5m Above Sea Level
Unique Id Number: Factory Programming
GPS Type: 50 Channels, Ceramic Patch Antenna
GPS Location Update; Every Minute
Size(DxWxL): Approx. 24 x 50 x 130mm (0.93 x 1.96 x 5.08in)
Standard Compass Safety Distance: 0.1-10 at 30cm/1ft
Features
1、Transmits GPS target tracking information over AIS, easy to operate, stable performance.
2、Compatible with plotters and onboard navigation systems to assist fast location and retrieval.
3、Features unique serialized ID, LED flashing indicator and buzzer.
4、Small and lightweight for mounting on life jacket, which is convenient to carry.
5、Support minimum 24 hour continuous operation, and has long battery storage life of up to 7 years.
Package List
1 x Personal Locator
2 x Buckles
1 x Manual
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.29 Inch |
| Height | 2.73 Inch |
| Length | 10.14 Inch |
