Product Overview
Product Material: Aluminum Alloy
Product Size: Approx. 11 x 8 x 3cm / 4.3 x 3.1 x 1.2in
Built in Battery Model: 18650
Capacity: 5000mah
Features:
Weldable Nickel Plated Tape: Maximum weldable 0.2mm nickel plated tape, 0.25mm slotted nickel tape to assemble 18650 and other battery packs, recommended for long term use of 0.15mm
Long Standby Time: The standby time can be up to 1 year when it is turned off, and the storage time can be up to 3 years.
GEAR: gear adjustment, short press the white button to switch the mode, the arrowhead points to xxms, long press the black button to adjust the gear, divided into 30 gears
DELAY: Delay adjustment, the adjustment method is the same as the gear
TEST: The actual output of the current value measured by the welding pen
Short Circuit Protection: The machine is equipped with short circuit protection to monitor each weld
x: Indicates short circuit protection
Use scenario 1: power bank, toy car maintenance, because the power bank, toy car current is relatively small, generally between 1-3A, you can use 0.1 nickel tape spot welding. Adjust the parameters (GEAR=5ms DELAY=0.8S) to easily weld, the solder joints are very bright, not black, not oxidized, greatly increasing the service life
Use Scenario 2: Pointed batteries are generally easier to obtain, but due to a concave position, ordinary spot welders can only be adjusted in five or six gears. If the pressure is too tight, it cannot be welded, and if it is too light, it will burn through. Use this welding machine to adjust the parameters (GEAR=7ms DELAY=0.8S) to properly increase the current output. Nickel strips are spot welded firmly in the grooves. Perfectly achieve maintenance goals.
Use scenario 3: Power lithium battery, which can provide huge current. Power tools, electric vehicles all use it to assemble industrial 0.15mm or even 0.2mmn nickel strips. Just adjust the parameters (GEAR=30MS DELAY=1.2S)
Features
1、Long Standby Time: The standby time can be up to 1 year when it is turned off, and the storage time can be up to 3 years. It can be picked up and used without maintenance.
2、Weldable Nickel Plated Tape: Maximum weldable 0.2mm nickel plated tape, 0.25mm slotted nickel tape to assemble 18650 and other battery packs, recommended for long term use of 0.15mm.
3、Built in Ammeter: The digital display portable spot welding machine has a built in ammeter, which is easy to operate and easy to use.
4、Short Circuit Protection: This digital display spot welder has short circuit protection function and has a high current of 1100A.
5、Applicable Scene: It can be used for power bank, toy car maintenance, power lithium battery and other scenarios.

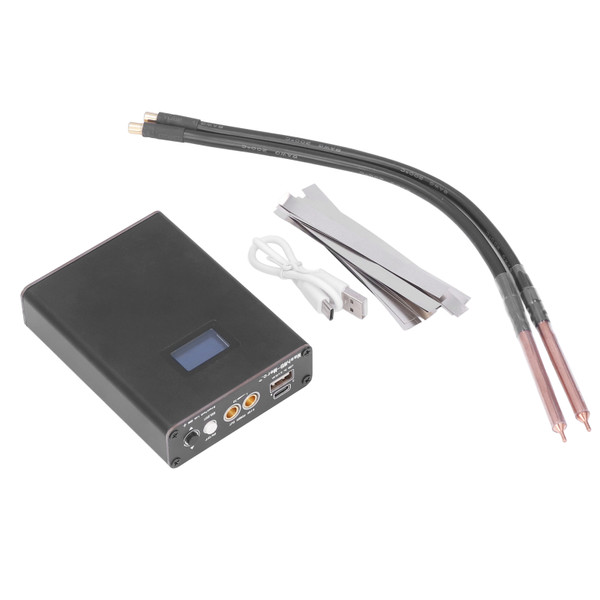

Package List
1 x Host
1 x Soldering Pen
1 x Charging Cable
1 x Nickel Belt
Package Weight and Dimension
| Weight | 1.05 lb |
| Width | 4.29 Inch |
| Height | 1.95 Inch |
| Length | 7.02 Inch |
