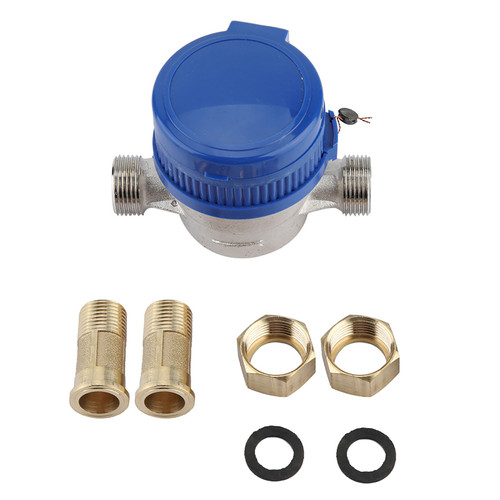

Positive Displacement Water Meter Brass Cold Water Flow Meter for Garden and Home 1/2inch Fitting

Item Type: Positive Displacement Water Meter
Material: Brass
Model: LXH 15E
Temperature Class: T30
Accuracy Class: Class 2
Connection Thread: D: G3/4B d: R1/2
Use Condition: Water temperature ≤ 50°C Water pressure ≤ 1Mpa
Applicable Standards: ISO4064(GB T778.1-1996) ISO4064(GB T778.1-2007)
Features:
1. A rotary piston metering principle with products conforming to ISO 4064 Class C, R160.
2. High sensitivity, allowing metering at low flow rates of 4 litres per hour.
3. Unlimited installation position, can be installed horizontally, vertically or at an angle without affecting metering accuracy.
4. The counter's digital wheel is sealed with a special liquid to maintain clear readings for a long time.
5. The moving parts are made of excellent materials for stable and reliable performance.
6. Horizontal volumetric meters are available for customers with different options of 10 litres/pulse, 100 litres/pulse and 1000 litres/pulse.
7. Vertical volumetric meters are available for customers with 1 litre/pulse.

Features

1、Vertical or Horizontal Installation: This positive displacement water meter can be installed in any position, vertical or horizontal, with the dial facing up or down or sideways and the water flowing down or up. Very small flows can be detected. With internal check valve.
2、Arbitrary Rotation: This positive displacement water meter has an arbitrary rotation function to facilitate meter reading. The digital display section above the meter provides a visual indication of the total cubic metres. The pointer below allows meticulous recording of water quantities up to 1 cubic metre, accurate to 0.0001.
3、Corrosion Resistance: This positive displacement water meter is made of the reliable materials and is resistant to corrosion and condensation deposits. The instrument cover is made of brass and the bearing elements are made of excellent steel, hard wearing synthetic stone and other elements made of plastic.
4、Compatibility: This positive displacement water meter is equipped with a 1/2inch NPT fitting and cannot be connected to a hose with a 3/4inch NPT fitting.
5、Versatile Use: The cold water flow meter is a versatile tool that can be used to measure water flow in various applications, which is suitable for use in gardens and homes, where it helps homeowners keep track of their water consumption and conserves water resources.

Package List

1 x Positive Displacement Water Meter

6 x Accessory
