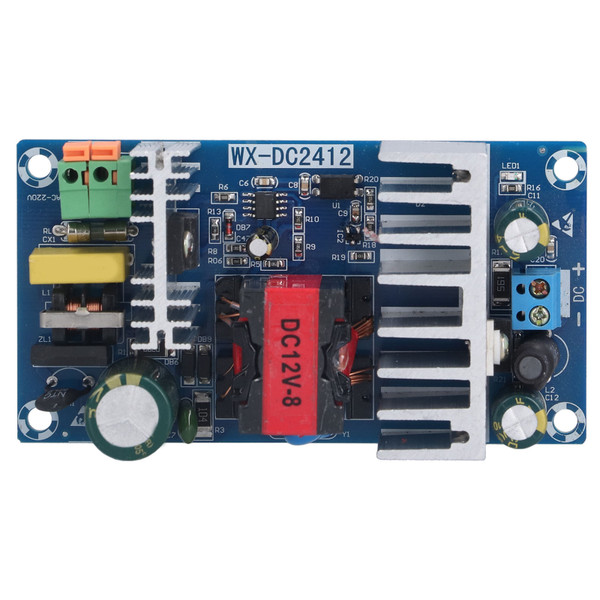

Product Overview
Item Type: Power Module
Material: PCB
Power Supply Model: WX-DC2412
Power Protection: Overvoltage, Overload, and Short Circuit Protection Are All Available
Ac Input: AC90-265V Universal
Ac Frequency: 50HZ / 60HZ
Output Current: Rated 8A - Summit 11A
Output Power: Rated 100w
Material: PCB
Power Supply Model: WX-DC2412
Power Protection: Overvoltage, Overload, and Short Circuit Protection Are All Available
Ac Input: AC90-265V Universal
Ac Frequency: 50HZ / 60HZ
Output Current: Rated 8A - Summit 11A
Output Power: Rated 100w
Features
1、Power module built‑in protection design to prevent over voltage, over current and short circuit.
2、Wide range of applications, suitable for the power supply of civil or industrial control systems.
3、Switching power supply module adopts wide working voltage, energy saving design, efficiency up to 90%.
4、The output voltage is DC 12V, and the output current is rated 8A to summit value 11A.
5、With circuit protection design, AC DC power supply module can prevent the circuit from burning out.
Package List
1 x Power Module
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 1.56 Inch |
| Length | 6.24 Inch |
