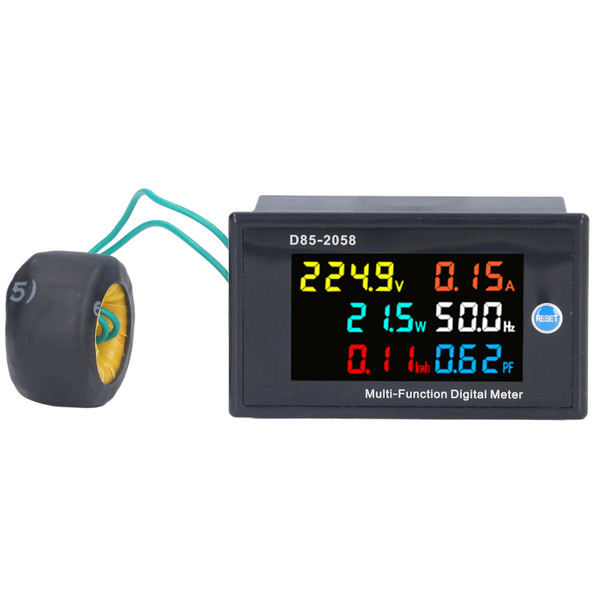

Power Monitor Single Phase LCD Digital Display Voltage Current Meter Tester AC 200‑450V

Item Type: Power Monitor
Model: D85-2058
Material: ABS
Measurement Accuracy: 1% ± 2 digit.
Measuring Range:
AC Current Measuring Range: AC 0-100A, the current display resolution is 0.01A, when it exceeds 100A, it will display 100.0A.
Active Power Display Range: 0-45000W
Electric Energy Measuring Range: 0-99999kwh. The minimum display resolution of 0-999.99kWh measuring range is 0.01kwh, the minimum display resolution of 10000.0-999.9kwh measuring range is 0.1kwh, the minimum display resolution of 10000.0-99999kwh measuring range is 1kwh.
Power Frequency Measuring Range: 45.0Hz-65.0Hz
Power Factor Measuring Range: 0.00-1.00PF
Measuring Speed: 2 times per second.
Memory Function: When the meter is powered off during use, the accumulated power value of the meter will be stored by itself (the previous energy data will be saved).

Features

1、Practical Use: Used to measure AC voltage, current, active power, power factor, power frequency and electrical energy.
2、Clear Display: Equipped with a LCD digital display screen, the clear data viewing will largely simplify your working.
3、High Accuracy: Comes with wide measuring range and high accuracy as well, the easy measurement enables better control.
4、Better Design: Also has memory function and high testing efficiency, the operation of this power monitor is very easy.
5、Easy to Install: Designed to have a light weight and a compact size, the simple installation can be quickly finished.

Package List

1 x Power Monitor

1 x User Manual
