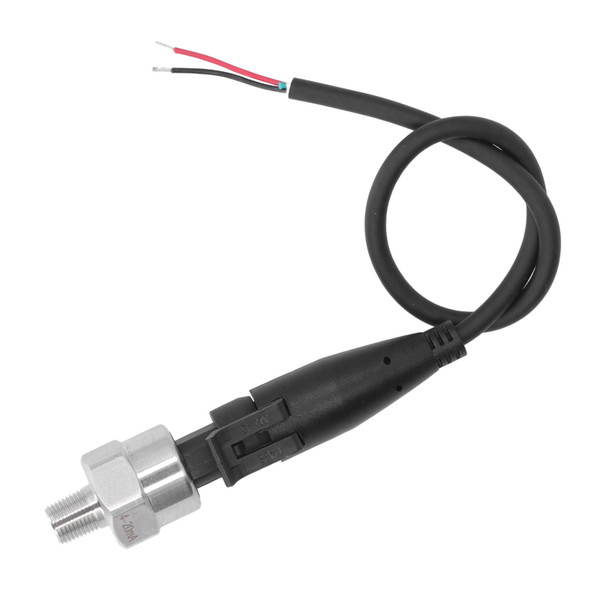

Pressure Transducer 4‑20ma Sender Stainless Steel Sensor 1/8in 27NPT Thread Electronic Component for Oil Fuel Air Water

Item Type: Pressure Transducer
Rated Pressure Range: 0~20Mpa
Overload Pressure: 1.5 Times rated pressure
Failure Pressure: 3 Times rated pressure
Response Time: <2ms
Operating Temperature: -40℃~125℃
Output Signal: 4-20ma
Accuracy: Within 2% of reading(full scale)
Thread: 1/8in 27NPT thread
Media Compatibility: Coolers, clean non corrosive oil, gas and water, etc.
Connection Connector: Water seal quick disconnect. Includes fit connector(standard for Packard Metr Pack connector) and harness(pigtail)
Wiring: Red +5V, black is the ground, blue(sometimes green) is used for signal output

Features

1、ACCURATE DETECTION: Transducer output has small error, high accuracy, ±2%FS(including nonlinear, cycle and repeatability, full temperature range)
2、COMPACT AND PORTABLE: The pressure sender is light in weight, small in volume, easy to install and operate
3、STABLE AND DURABLE: Pressure sensor has no wear, stable performance, small long term drift small, long life
4、PERFECT REPLACEMENT: Stainless steel pressure sensor is fully compatible, can directly replace mechanical sensors, with perfect surge voltage protection
5、MEDIA COMPATIBILITY: Pressure sensors can be used for coolers, clean, non corrosive oil, gas and water, etc.

Package List

1 x Pressure Transducer
