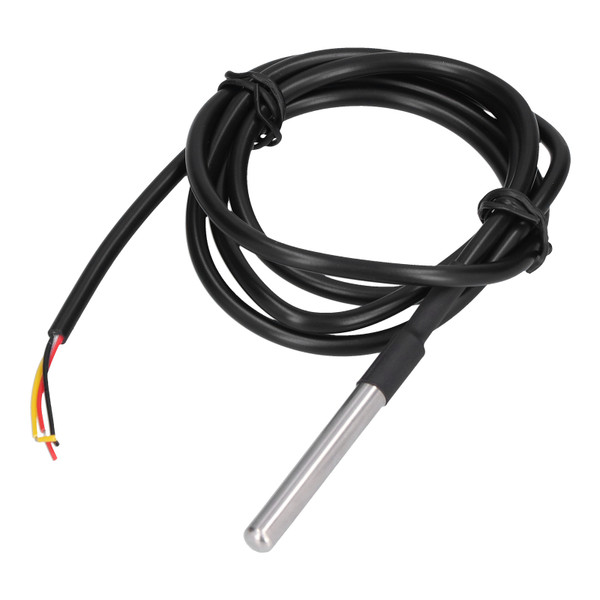

Product Overview
Material: ABS+stainless steel
Purpose: Temperature sensor
Stainless Steel Housing: Approx. 6 x 50mm / 0.2 x 2in
Power Supply: 3V~5.5V
Resolution: 9~12 bits
Temperature Sensing Range: -55℃ ~ +125℃(maximum temperature of lead part is about 85 degrees)
Output Lead: Red (VCC), yellow (DATA), black (GND)
Features
1、Stainless Steel Package: Using advanced back cover technology, upgrade the product from an ordinary temperature measuring head to exposed temperature measurement to a stainless steel package, the whole is round and bright
2、Wear and Temperature Resistant: The wire is made of exquisite wear resistant ABS material, real material is wear resistant and temperature resistant, safe to use and trustworthy
3、High Accuracy Sensor Chip: The probe contains a high accuracy sensor chip, fast and accurate, which is an ideal sensor accessory for temperature control equipment
4、9~12 Bits Resolution: Probe temperature sensor is powered by 3V~5.5V, resolution is 9~12 bits, possess high accuracy
5、Wide Range From ‑55℃ to +125℃: The temperature sensor range is from ‑55℃ to +125℃, and the lead part can withstand a maximum temperature of about 85℃
Package List
1 x Probe Temperature Sensor
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 5.46 Inch |
| Height | 0.78 Inch |
| Length | 6.24 Inch |
