Product Overview
Item Type: Digital Display Voltmeter
Model: PZEM-025
Material: PBT
Specification: 100A
Producr Size: Approx. 85.3x44x32mm / 3.4x1.7x1.3in
Backlit Control: short press the button to turn on or off the backlight
Energy Consumption Reset: long press the button for more than 3 seconds to reset energy consumption
Current Indication: the current has a direction indication, the "-" sign indicates the reverse direction, otherwise it means the forward direction
Energy Consumption Indication: energy consumption has direction indication, "-" sign indicates reverse direction, otherwise it means forward direction
The direction of energy consumption accumulation is judged according to the direction of the current, the current is positive, the energy consumption increases, the maximum is 999KWH, and the overflow is maintained, unless manually cleared; the current is reversed, the energy consumption decreases, the maximum is -999KWH, and the overflow is maintained, unless manually cleared.
Way of Working:
Data Saving: energy consumption and backlight status can be saved when power off
Application Scenarios: high and low power distribution cabinets, display racks, photovoltaic inverters, assembly line testing, electronic maintenance, electronic DIY, etc.
Model: PZEM-025
Material: PBT
Specification: 100A
Producr Size: Approx. 85.3x44x32mm / 3.4x1.7x1.3in
Backlit Control: short press the button to turn on or off the backlight
Energy Consumption Reset: long press the button for more than 3 seconds to reset energy consumption
Current Indication: the current has a direction indication, the "-" sign indicates the reverse direction, otherwise it means the forward direction
Energy Consumption Indication: energy consumption has direction indication, "-" sign indicates reverse direction, otherwise it means forward direction
The direction of energy consumption accumulation is judged according to the direction of the current, the current is positive, the energy consumption increases, the maximum is 999KWH, and the overflow is maintained, unless manually cleared; the current is reversed, the energy consumption decreases, the maximum is -999KWH, and the overflow is maintained, unless manually cleared.
Way of Working:
Data Saving: energy consumption and backlight status can be saved when power off
Application Scenarios: high and low power distribution cabinets, display racks, photovoltaic inverters, assembly line testing, electronic maintenance, electronic DIY, etc.
Features
1、HTN wide viewing angle liquid crystal screen, clearly distinguishable. Green backlight, high contrast.
2、It has the reverse indication of voltage, current, power, energy consumption, current and energy consumption.
3、The voltmeter is simple to install, embedded installation, minimalist wiring.
4、Digital display voltmeter is an industrial design and integrated built‑in shunt.
5、DC Tester uses reinforced PBT material, high temperature resistance, durable.

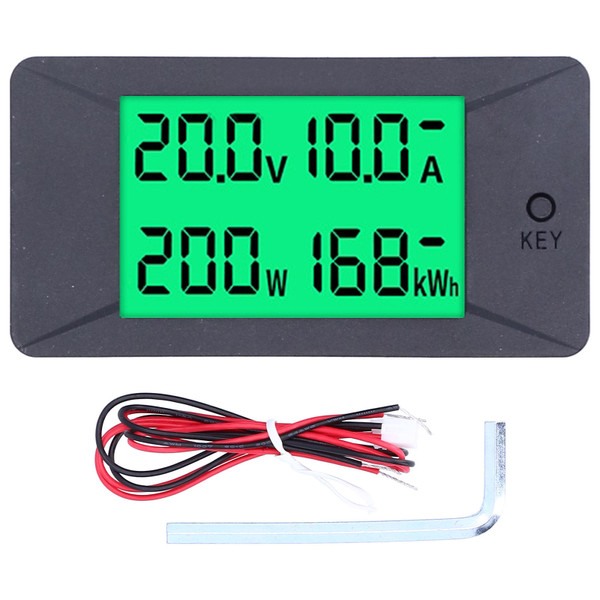

Package List
1 x Digital Display Voltmeter
1 x Wrench
2 x Line
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 1.95 Inch |
| Length | 3.51 Inch |
