Product Overview
Item Type: Radio Development Board
Material: PCB
Operating Frequency: 1 MHz-6.6 GHz Operating Frequency
Working Mode: Half Duplex Transceiver
Sample Frequency: Up to 25 Million Samples Per Second
Sampling Mode: 8 Bit Quadrature Sampling (8 Bit I and 8 Bit Q)
Software Controlled Antenna Port Power (50 mA at 3.3 V)
Material: PCB
Operating Frequency: 1 MHz-6.6 GHz Operating Frequency
Working Mode: Half Duplex Transceiver
Sample Frequency: Up to 25 Million Samples Per Second
Sampling Mode: 8 Bit Quadrature Sampling (8 Bit I and 8 Bit Q)
Software Controlled Antenna Port Power (50 mA at 3.3 V)
Features
1、Compatibility: This is a radio development board compatible for GNU Radio, for SDR, etc.
2、USB Power Supply: The radio development board can be USB powered, SMA female antenna connector, SMA female input and output for synchronization.
3、Configurable RX and TX Gains: The radio development board can be configured with RX and TX gains and baseband filters.
4、Programming Button: The radio development board has a convenient programming button for the extended internal pin header.
5、Sample Frequency: The sample frequency of this radio development board is up to 25 million samples per second.

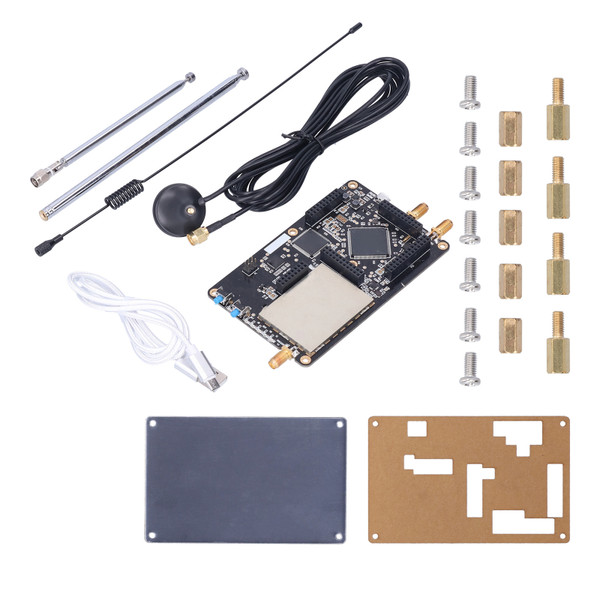

Package List
1 x Radio Development Board
3 x Antenna
1 x USB Cable
2 x Acrylic Board
1 x Antenna Base
1 Pack x Fastener
Package Weight and Dimension
| Weight | 0.73 lb |
| Width | 3.9 Inch |
| Height | 2.34 Inch |
| Length | 9.75 Inch |
