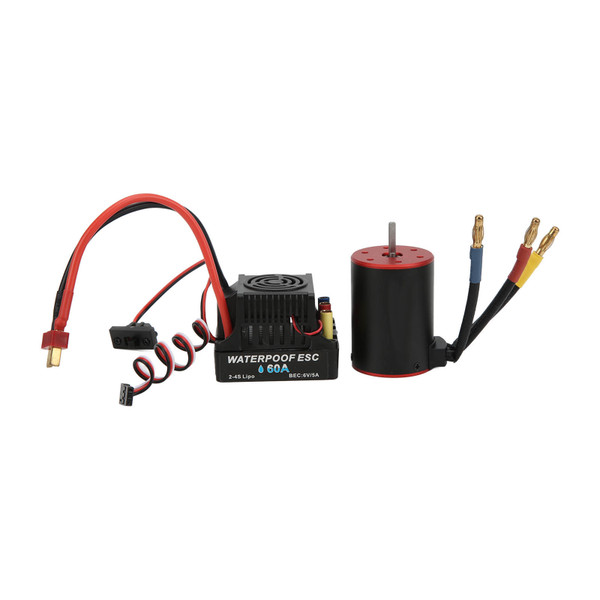

Product Overview
Material: Aluminum Alloy + Plastic
Product Color: As Pictures Shown
Product Weight: Approx. 273g / 9.6oz
Compatible: Fit for 1/10 RC Car
ESC Parameters：
Item Model: 60A
Type: Brushless
Continuous Current: 60A
Burst Current: 320A
Resistance: 0.0007ohm
Battery: 2-3cells Lipo
BEC Output: 5.8V/3A (switch mode)
Suitable Brushless Motor: ≥9T
Motor Parameters:
Name: 3650 RC Engine
KV (rpm/volt): 2300KV
Watt: 850
Maximum RPM: 60000 Maximum
Maximum Current: 100A
Number of Rotor Poles: 4
Features
1、60A ESC: The 60A ESC has a high current capacity of 100A DC and 800A explosive current. It is suitable for various conditions and ensures stable conduction.
2、High Performance: The components are waterproof and dustproof, and durable. The resistive current capability is strong, and the heat dissipation is good.
3、High Efficiency: The high frequency drive system and low resistance field effect tube increase the load capacity and improve the power utilization rate.
4、Precision Balanced Rotor: The precisely balanced rotor can provide smoothness and maximum speed with the best reliability.
5、Heat Sink and Copper Winding: CNC processing 6061 T6 aluminum billet heat sink, high purity copper winding can maximize efficiency.
6、Bearings and Stator Laminations: High speed ABES5 super large bearings and super thin stator laminations for more powerful performance.
Package List
1 x Manual
1 x Motor
1 x ESC
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 1.56 Inch |
| Length | 5.46 Inch |
