Product Overview
Material: Aluminum Alloy + Copper + Plastic
Product Color: As Pictures Shown
Product Weight: Approx. 457g / 16.1oz
Compatible: Fit for 1/8 RC Car
Motor Parameters:
Diameter: Approx. 36mm / 1.4in
Length: Approx. 60mm / 2.4in
Shaft Length: Approx. 17mm / 0.7in
Shaft Diameter: Approx. 5.0mm / 0.2in
Maximum Amperage: 80A
Kv Value: 3300KV
Maximum Speed: 50000
ESC Parameters：
Continuous Current: 80A
Peak Current: 480A (10 Seconds)
Applicable Power Supply: 2-4S LiPo / 4-12S NiMh
Bec: 5.8V / 3A
Cooling System: Cooling Fan
Programmable: Yes
Heat Sink Parameters：
Compatible: For 3360/3670 motor
Features
1、Super smooth and precise throttle linearity, compatible with sensorless and brushless motors.
2、Lithium or nickel battery low‑voltage cut‑off protection, overheating protection, throttle signal loss protection and many other protection functions.
3、Built‑in high‑efficiency and high‑power 5.8V/3A BEC of the ESC can effectively control the operation of the motor and have a powerful voltage stabilizing function.
4、The ESC features enhanced throttle response, excellent acceleration, strong breaks, which is fit for 1/8 RC Car.
5、Through the heat sink and cooling fan combination, the temperature can be controlled and the motor can be operated and cooled efficiently.
6、High‑purity copper windings maximize efficiency and accurate design can achieve maximum energy coverage.

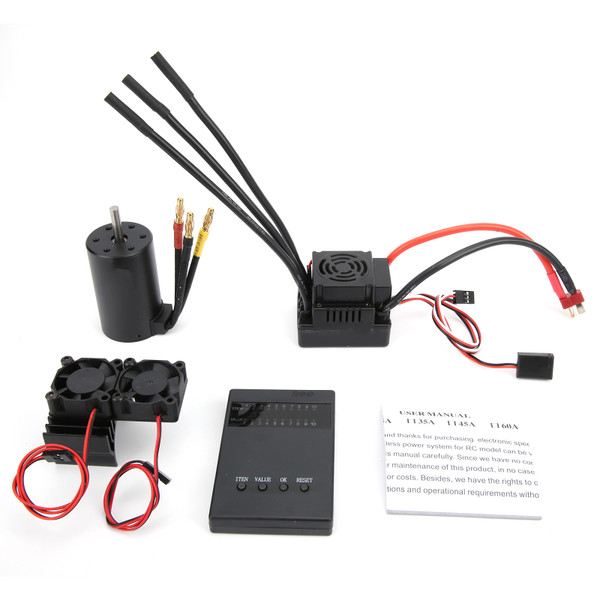

Package List
1 x Motor
1 x ESC
1 x Motor Heat Sink
1 x Programming card
1 x Manual
Package Weight and Dimension
| Weight | 1.01 lb |
| Width | 5.46 Inch |
| Height | 2.34 Inch |
| Length | 7.41 Inch |
