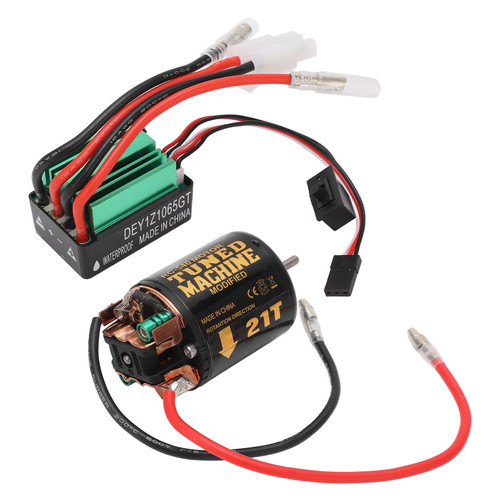

Product Overview
Material: Iron, Plastic, Copper
550 Motor:
Motor Length: Approx. 57mm / 2.2in (Without Shaft)
Motor Diameter: Approx. 36mm / 1.4in
Shaft Diameter: Approx. 3.175mm / 0.1in
Motor Shaft Length: Approx. 16mm / 0.6in
65A ESC:
Battery Support: 5 9Ni MH, 4 6Ni Cd (4.8V-7.2V)
Li Ion Battery 2-3S: 7.4V-11.1V
BEC Output: 5V 2A (Power Supply For Receiver, Servo)
Function: Forward, Brake. Forward, Brake, Backward
Continuous Output Current: 320A (Forward), 160A (Reverse), 270A (Brake)
Product Size: Approx. 43x30x28mm / 1.7x1.2x1.1in (No Cable)
Suitable For Model Car Modification Power, DIY Modification Frame Use, Maintenance Replacement Use
Features
1、HIGH PURITY COPPER WINDINGS: RC car bushed motor ESC uses high purity copper windings and sealed bearings to produce less heat, more power, less friction and less noise.
2、MAXIMUM ENERGY CONVERSION: 550 brushed motor for precise and maximum energy conversion. The rotor is precisely balanced and stable for increased reliability and maximum speed.
3、IMPROVED EFFICIENCY: High purity copper winding maximizes brushed motor efficiency and high strength magnets provide stable brushed motor performance.
4、MULTIPLE PROTECTION FUNCTIONS: 65A brushed ESC has multiple protection functions, ESC with strong current resistance and good heat dissipation. Long service life, a good choice for RC car replacement.
5、OVERHEAT PROTECTION: When the temperature reaches 100°C, the output power decreases and the speed slows down, when the temperature drops, the speed will return to normal.
6、HIGH POWER: 65A waterproof brush ESC compatible with brush motor with for Tamiya white plug, high power, can be used for different types of ships or cars.
Package List
1 x 550 Brushed Motor
2 x Wiring
1 x 65A Brushed ESC
1 x Instruction Manual
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 6.24 Inch |
| Height | 1.56 Inch |
| Length | 6.63 Inch |
