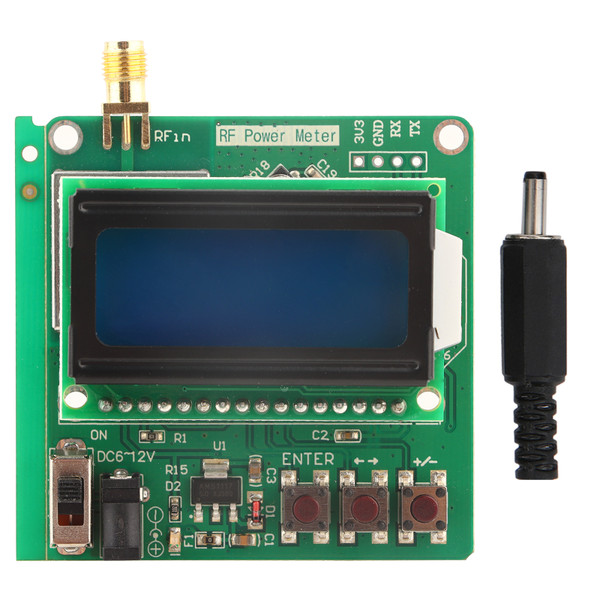

Product Overview
Item Type: RF Power Meter
Product Material: ABS
Measuring Power Range: -60～-5 dBm (External RF attenuator can be extended to 100dBm)
Measurement Power Resolution: 0.1 dBm
Measuring Frequency Range: 1～8000 MHz
Output Interface: SMA_K
Working Current: <70 mA (backlight on)
Working Temperature: -40℃～65℃
Storage Temperature: -40℃～65℃
Product Material: ABS
Measuring Power Range: -60～-5 dBm (External RF attenuator can be extended to 100dBm)
Measurement Power Resolution: 0.1 dBm
Measuring Frequency Range: 1～8000 MHz
Output Interface: SMA_K
Working Current: <70 mA (backlight on)
Working Temperature: -40℃～65℃
Storage Temperature: -40℃～65℃
Features
1、The measuring power range of this RF power meter is -60～-5 dBm, and the frequency range is up to 8000MHz
2、The RF power meter is light, compact and convenient, with a measurement power resolution of 0.1 dBm, and an output interface SMA_K.
3、This RF power meter comes with an LED screen, the data is clear and straightforward, and it is easy to use.
4、The precise mechanical structure of the RF power meter makes the measurement accurate, convenient and reliable.
5、The RF power meter has been inspected many times before it leaves the factory to confirm the quality.
Package List
1 x RF Power Meter
1 x Plug
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.68 Inch |
| Height | 1.17 Inch |
| Length | 5.85 Inch |
