Product Overview
Material: PCB
Power Supply And Communication Interface: TYPE C 5V at 0.2A
Refer to ADI official evaluation board circuit and layout.
Output Signal: 2.2-4.4G Fundamental (Sine Wave),35m-2.2g Fundamental (Sine Wave)
Point frequency sweep full touch control can realize point frequency, sweep frequency.
4 Levels of Amplitude Control.
Can be connected to an external reference clock.
Output Signal Interface: SMA Female Connector
Can be realized through the PC control, provide PC software, send the data line.
Features
1、Full Touch Screen Frequency Input: The RF signal source module is a full touch screen frequency input, the output frequency mode is point frequency, and the frequency sweep is optional.
2、SMA Female Output Interface: This RF signal source module adopts SMA female output signal interface with stable connection performance.
3、High Performance Chip: The chip for this RF signal source features a 23.5MHz to 6000MHz base frequency VCO, with an output binary buffer or driver for extended frequency ranges, a reference clock frequency of up to 200MHz, and compatibility with 1.8V control logic.
4、Equipped With Data Cable: This RF signal source module is equipped with a data cable, which can be connected to a PC to control the RF signal source, and PC software is provided.
5、Excellent PCB Material: This RF signal generator is made of excellent PCB material, which is solid and high temperature resistant, not easy to be warped, not easy to be eroded, and has a long service life.
Package List

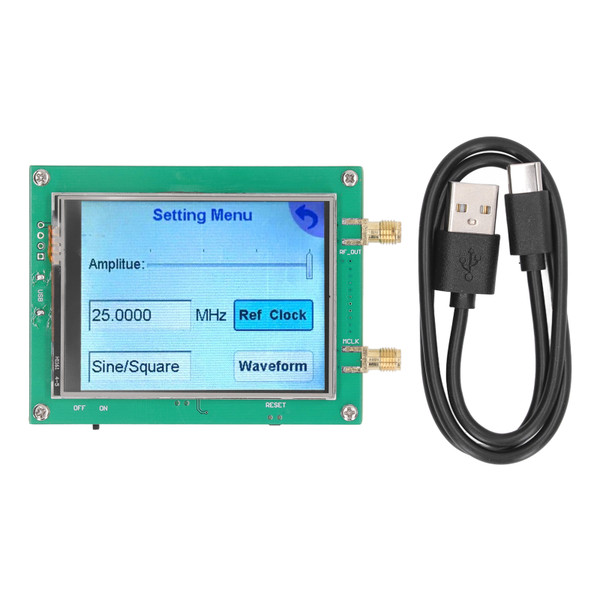

1 x RF Signal Generator
1 x Data Cable
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.29 Inch |
| Height | 1.17 Inch |
| Length | 4.68 Inch |
