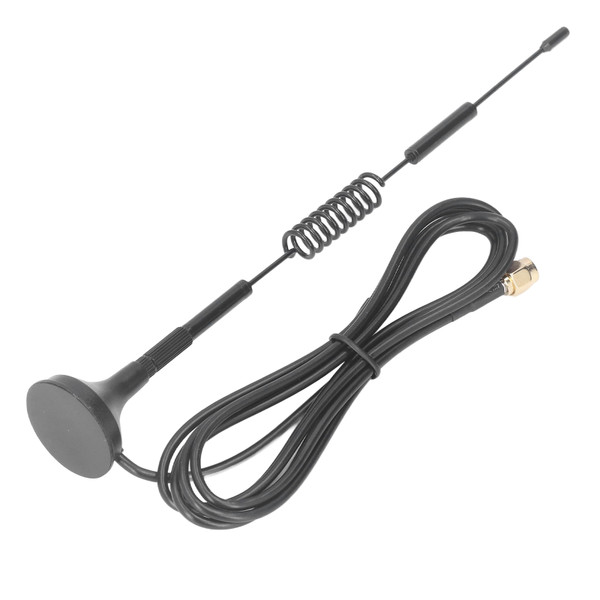

Router Antenna Omni Directional 12DBI High Gain Antenna with Magnetic Base SMA Male Interface

Item Type: Router Antenna
Model: XP-4G-007
Material: Copper
Purpose: Signal transmission and gain
Working Frequency: 700-2700Mhz
Antenna Gain: 12DBI
Standing Wave Ratio: ≤1.5
Impedance: 50Ω
Polarization Method: Vertical Polarization
Maximum Power: 50W
Antenna Interface: SMA male Interface
Cable Length: Approx. 1.5 meter / 4.9ft
Cable Type: RG174 Cable
Working Temperature: -40℃~+85℃
Applicable Equipment: 4G router, GPRS 3G 4G wireless module, mobile phone signal amplifier, advertising machine, numbering machine, vending machine, GPRS signal reception and transmission, etc.

Features

1、PORTABLE DESIGN: With 12DBI high gain and super strong signal, the antenna base and antenna mast can be disassembled for easy cleaning.
2、HIGH PERFORMANCE: SMA male interface, omnidirectional high gain antenna reduces co channel interference and improves transmission performance.
3、MAGNETIC BASE: Adopts accurate suction cup design, with magnetic base, which is easy to fix and can be adsorbed on metal objects surface.
4、COPPER INTERFACE: The antenna interface is made of excellent copper material, which is resistant to wear and corrosion, and has a long service life.
5、WIDE APPLICATIONS: Widely used in 4G routers, wireless modules, mobile phone signal amplifiers, advertising machines, vending machines, etc.

Package List

1 x Antenna
