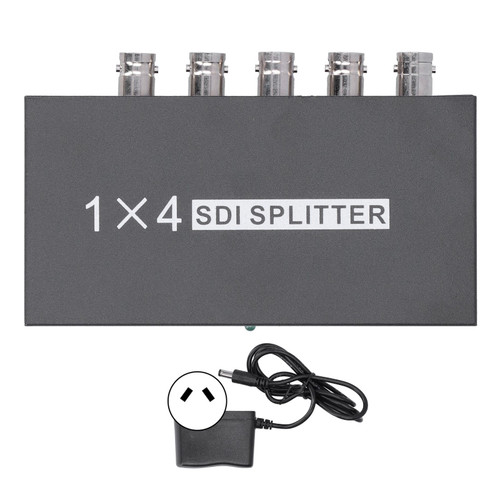

S114 SDI 1 Input 4 Output Splitter Digital SDI Dispenser Supports SDSDI HDSDI 3GSDI Up to 1320 Feet AC

Item Type: SDI One in Four out Distributor
Model: S114
Colour: Black
Material: Metal
Function: Digital Audio Distribution
Scope of Application: Widely Compatible
Output Ports: 4 Female BNC Output Ports
Frequency Bandwidth: 3 Gbps
Working Temperature: 0°C~40°C / 32 °F ~ 104 °F
Power Consumption (Maximum): 1.5 W

Features

1、SDI 1X4 Splitter: 1 SDI input signal is distributed to 4 SDI receiver units. One signal is divided into four signals. The input signal is 1080p, and the output signal is also 1080p.
2、Multi Distribution Support: Support SD‑SDI (270Mbps), HD‑SDI (1.485Gbps) and 3G‑SDI (2.97Gbps) and distribute to 4 simultaneous SDI outputs.
3、SDI Relay Function: Provides equalization and reclocking transmission, signal input and output distance: 300m for clear signal, 200m for HD signal, and 100m for 3G signal.
4、Plug and Play: This SDI signal distributor is equipped with a durable metal shell, intelligent design, plug and play, and can automatically detect SDI signals.
5、Wide Voltage Design: This signal distributor can support DC 5V~ voltage input (minimum 5V), which is more suitable for engineering use.

Package List

1 x SDI 1 in 4 out Distributor

1 x Power Adapter

1 x Manual
