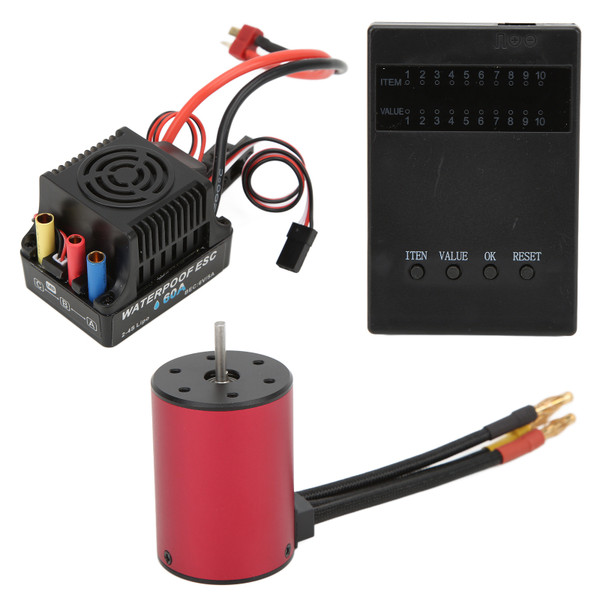

S3650 2300KV RC Brushless Motor 60A ESC Programming Card Kit for 1/10 Remote Control Car

Item Type: S3650 Motor ESC Kit
Motor Parameters
Material: Aluminum alloy + copper
Color: Red + black
KV Value: 2300KV
Motor Diameter: Approx. 36mm / 1.4in
Motor Length: Approx. 50mm / 2in (excluding shaft length)
Shaft Length: Approx. 15mm / 0.6in
Shaft Diameter: Approx. 3.175mm / 0.1in
Maximum Speed: 60000
Maximum Current: 100A
Connector: Approx. 4mm / 0.2in gold banana head
ESC Parameters
Shell Material: Plastic
Color: Black
Continuous Current: 60A
Peak Current: 320A
BEC Output: 6V/5A
Programming Card Parameters
Color: Black
Material: Plastic
Start Up Method: Medium soft strong
Maximum Braking Force: 50%, 25%, 75%, 100% (25A, 35A, 45A, 60A)
25%, 50%, 75%, 100% (80A, 120A)
Maximum Reverse Force: 25%, 50%, 75%, 100%
Neutral Range: 9%, 6%, 12% working status
Fitment: Fit for 1/10RC remote control car

Features

1、[Good Heat Dissipation] 4 pole 12 slot high torsion motor design, CNC processed 6061T6 aluminum radiator ensures the good heat dissipation of the motor.
2、[Durable Material] Made of high quality aluminum alloy, copper wire and plastic materials, safe, durable, and can be used for a long time.
3、[Multiple Protection Functions] With low voltage cut off protection, overheat protection, throttle signal loss protection.
4、[With Programming Card] RC brushless motor ESC kit is waterproof, with a programming card, you can DIY programming ESC settings.
5、[Widely Application] RC brushless motor kit is universal, suitable for 1:10 2S remote control car, 3S remote control car, suitable for various conditions of competition.

Package List

1 x Motor

1 x ESC

1 x Manual

1 x Programming Card
