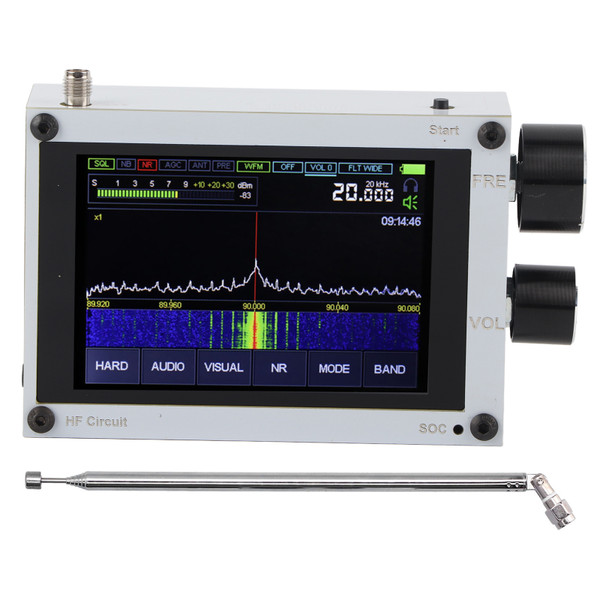

SDR Receiver Touch Screen Wireless Receiver Industrial Accessories 50kHz‑2GHz 3.5in

Item Type: SDR Receiver
Material: ABS
Frequency Range: 50kHz--2GHz
Battery Model: Lithium Battery (Built in)
Battery Capacity: 2000mAh
Power Consumption: 300mA
Operation Mode: 2 EC11 Pulse encoders and capacitive touch screen
Support Transmission: CAT, IQ and audio
Processor: STM32H743
Processor Frequency: 480MHz
Support Analog Modulation: AM, SSB, NFM, WFM, CW
Antenna Connector: SMA Head

Features

1、4 Layer Circuit Board: The main board PCB uses 4 layer circuit board process, and impedance matching is performed on the circuit
2、Filter Width: Use variable filter width, adaptive noise suppressor, threshold noise suppressor, NoiseBlanker, AGC and equalizer
3、Msi001 Chip: The characteristics of the msi001 chip is used, the dynamic blocking range is about 85dB
4、Controlling Screen Backlight: Screen backlight can be controlled, using sound cavity with bass diaphragm
5、Processor Core: The processor core uses STM32H743 with a main frequency of 480MHz and supports UHF UHF frequency bands
6、Power Supply: Built in battery and USB power supply, with linear lithium battery charging management, can be charged through TYPE‑C
7、Screen Display: The screen display bandwidth is 160kHz and can be zoomed and displayed, the board will be built into the receiver
8、Built in LNA: The built in LNA is to improve the dynamic range of the receiver, an extended version is to improve the shortwave HF band

Package List

1 x Wireless Receiver

1 x Antenna
