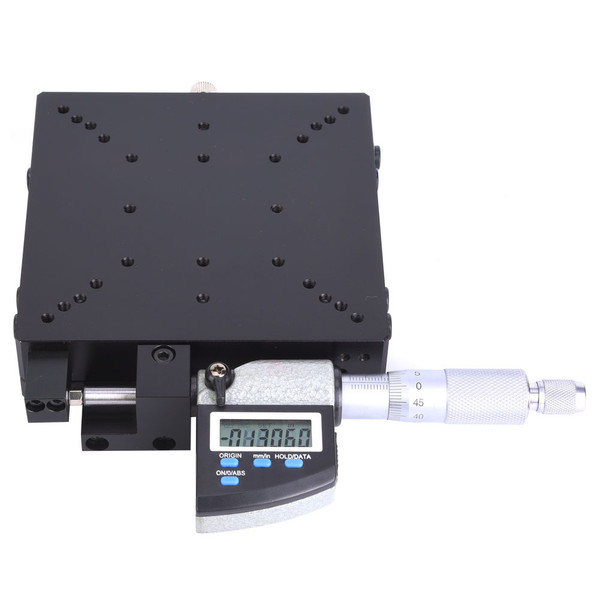

Product Overview
Item Type:Micrometer Platform
Table Size:120 x 120mm / 4.72 x 4.72in
Thickness:30mm / 1.18in
Loading Capacity:215.6N(21.0kgf)
X Shaft Stroke:+-12.5mm(Total Moving Distance 25.0mm)
Adjustment Accuracy:0.001mm
Material:Aluminum Alloy(Blackened Oxidized)
Movement Distance Adjustment: Micrometer differential head, large circle for coarse adjustment, small circle for fine adjustment
Sliding Track: Linear Guide
Rail Type: Cross Roller Type
Button Cell Type:CR2032 3V 210mAh
Table Size:120 x 120mm / 4.72 x 4.72in
Thickness:30mm / 1.18in
Loading Capacity:215.6N(21.0kgf)
X Shaft Stroke:+-12.5mm(Total Moving Distance 25.0mm)
Adjustment Accuracy:0.001mm
Material:Aluminum Alloy(Blackened Oxidized)
Movement Distance Adjustment: Micrometer differential head, large circle for coarse adjustment, small circle for fine adjustment
Sliding Track: Linear Guide
Rail Type: Cross Roller Type
Button Cell Type:CR2032 3V 210mAh
Features
1、Aluminum alloy black oxidation manufacturing, wear-resistant, anti-corrosion, waterproof and anti-oxidation, durable.
2、Sliding guideway adopt cross roller type, load bearing capacity is strong.
3、Digital display micrometer adjustment, convenient reading and control, displacement accuracy up to 0.001 mm
4、Widely applicable to production machinery, inspection equipment, optical laboratory accuracy measurement, fine-tuning displacement, mechanical equipment positioning and movement.
5、The platform size is 120x120mm with a loading capacity of 215.6N(21.0kgf).
Package List
1 x Micrometer Platform
Package Weight and Dimension
| Weight | 3.86 lb |
| Width | 9.75 Inch |
| Height | 2.34 Inch |
| Length | 9.75 Inch |
