Product Overview

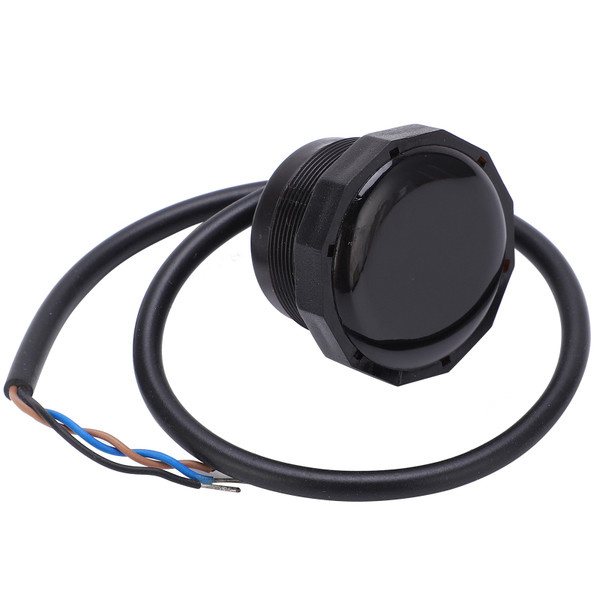

Item Type: Sensor
Material: PC-V0 fireproof material
Model: XKC-KD200-NPN-NO
Sensing Distance: Approx. 0.3-180cm / 0.1-70.9in adjustable(There is a certain error between the sensing distance and the obstacle color, light color is far away, dark color is close)
Sensing Angle: 30-40° cone angle
Sink Current: <3mA
Load Current: <3A
Working Temperature: -20-85℃
Storage Temperature: -20-85℃
Wire Length: Approx. 30cm / 11.8in (±10mm / 0.4in)
Waterproof Rating: IP67
Material: PC-V0 fireproof material
Model: XKC-KD200-NPN-NO
Sensing Distance: Approx. 0.3-180cm / 0.1-70.9in adjustable(There is a certain error between the sensing distance and the obstacle color, light color is far away, dark color is close)
Sensing Angle: 30-40° cone angle
Sink Current: <3mA
Load Current: <3A
Working Temperature: -20-85℃
Storage Temperature: -20-85℃
Wire Length: Approx. 30cm / 11.8in (±10mm / 0.4in)
Waterproof Rating: IP67
Features
1、With adjustable delay closing time and sensing distance, wide sensing range and high accuracy.
2、Can sense the infrared rays radiated by the target, and use the physical properties of infrared rays to measure.
3、The sensor integrates infrared emission, reception and intelligent control, with strong practicability.
4、Using PC‑V0 fireproof material, flame retardant and impact resistance, has high safety factor.
5、Easy to install and does not take up space, often used in security alarms, sensor lights, smart trash cans, vending machines, faucets, etc.
Package List
1 x Sensor
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.56 Inch |
| Height | 1.56 Inch |
| Length | 3.12 Inch |
