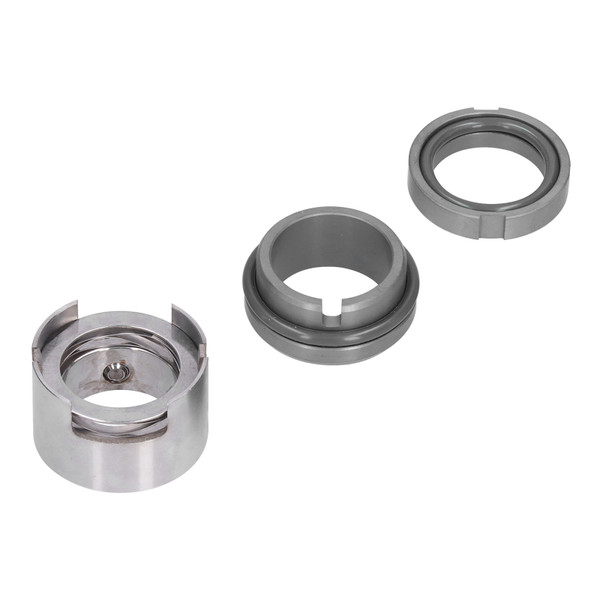

Shaft Seal M7N‑30 Graphite Silicon Carbide Mechiacl Seals with Base for Pump Kettle Mechanical Seal Water Seal

Item Type: Shaft Seal
Material: Graphite, Silicon Carbide, Butyronitrile, 304 Stainless Steel
Usage: Mechanical Seal, Water Seal
Model: M7N-30
Application Scope: Pump, Kettle
Working Pressure: 1.6 (MPa)
Operating Temperature: -30~120℃
Type: Dynamic Ring

Features

1、This is a M7N‑30 model mechiacl seal, woring pressure is 1.6 Mpas and operating temperature is ‑30~120℃.
2、The ingenious design of the bellows contains multiple functions such as the sealing face bracket, the secondary sealing component and the drive collar.
3、The sealing face is driven by a spring and an "L"‑shaped ring, and there is no glue connection. All face materials can be interchanged.
4、Made of a variety of high‑quality materials, this mechanical seal is durable and has a long service life.
5、No need to modify any size when using, this mechanical seal is perfectly designed and precisely processed.

Package List

1 x Shaft Seal

1 x Base
