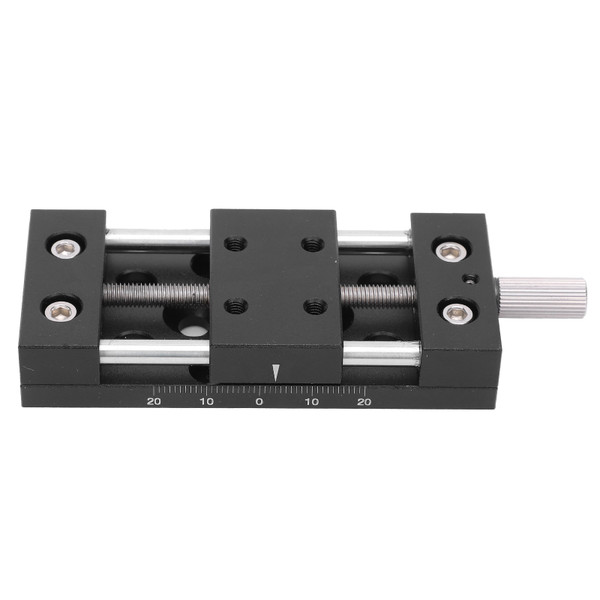

Sliding Table XAxes Manual Knob FineTune Slide Stage Displacement Platform SP40ADB35

Item Type: Sliding Table
Material: Aluminum alloy
Model: SP40A-DB35
Table Size: Approx. 25 x 40mm / 1 x 1.6in
Stroke: Approx. 35mm / 1.4in
Load: Approx. 3kgf
Thread Pitch: Approx. 0.8mm / 0.03in

Features

1、The sliding table is made of aluminum alloy, which is silent when working, scratch‑resistant and friction‑resistant.
2、The sliding table is guided by the movement of the dovetail drive, which has large load‑bearing capacity and stable movement.
3、The slide table is controlled by the gear rotating handle, which has smoother operation and higher accuracy.
4、The sliding table is X‑axes control, with a stroke of 35mm, and the movement distance of the platform can be fine‑tuned.
5、Suitable for optical equipment, measuring devices, semiconductor manufacturing equipment and printers, etc.

Package List

1 x Sliding Table
