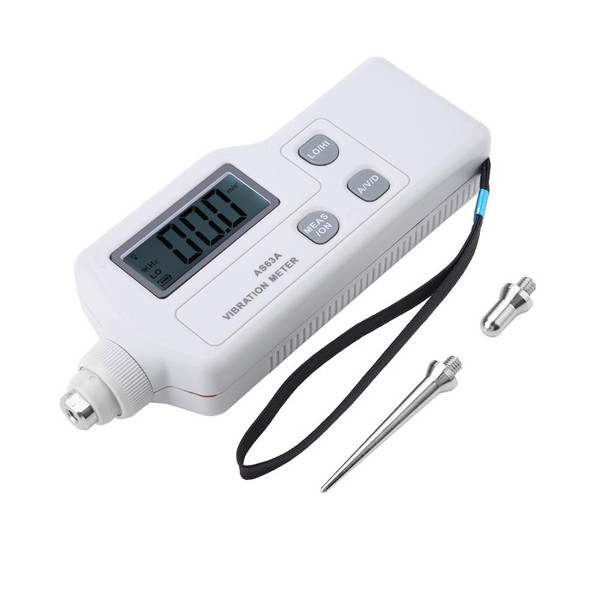

Product Overview
Features:
1. Visually displays measurement value and state
2. Acceleration, velocity and displacement measurement
3. Different vibration frequency selection
4. High sensitivity probe for accurate measurement
5. Provides long and short probe head, each one is suitable for different situation measurement.
6. Equipped with AC signal output interface
7. Low power indication function and auto power-off function
8. LCD backlight for easy reading.
9. Simple to use, the structure is compact, portable for carrying along with measurement
Specification:
Condition: 100% Brand New
Brand: SMART SENSOR
Model: AS63A
Technical parameter
Technical specification
Vibration pickup
Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration
0.1-199.9m/s² peak
Measurement range of velocity
0.1-199.9mm/s rms
Measurement range of displacement
0.001-1.999mm p-p (Velocity and displacement range is limited
by acceleration199.9m/s2)
Measurement accuracy
±10%+2digits
Measurement frequency range of acceleration
10Hz-1KHz (LO) 1KHz-15KHz (HI)
Measurement frequency range of velocity
10Hz-1KHz (LO)
Measurement frequency range of displacement
10Hz-1KHz (LO)
Displays update cycle
1 seconds
LCD display
3 1/2 digits display
Single output
AC output 2 V peak (display full scale)
Load impedance 10KΩor more earphones can be connected
Power supply
9V battery (not include)
Static current
≤20μA
Operating current
≤25mA
Auto power-off function
Turns off automatically after 60 seconds
LCD backlight function
7 seconds
Operating temperature range
0-40℃
Operating humidity range
30-90%RH
Low battery indication
6.9V±0.2V
Weight: Approx. 648g / 22.9oz
Size: Approx. 17 * 6.5 * 3cm / 6.7 * 2.6 * 1.2in(probe is not included)
Package List:
1 * Vibration Meter
2 * Probes
1. Visually displays measurement value and state
2. Acceleration, velocity and displacement measurement
3. Different vibration frequency selection
4. High sensitivity probe for accurate measurement
5. Provides long and short probe head, each one is suitable for different situation measurement.
6. Equipped with AC signal output interface
7. Low power indication function and auto power-off function
8. LCD backlight for easy reading.
9. Simple to use, the structure is compact, portable for carrying along with measurement
Specification:
Condition: 100% Brand New
Brand: SMART SENSOR
Model: AS63A
Technical parameter
Technical specification
Vibration pickup
Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration
0.1-199.9m/s² peak
Measurement range of velocity
0.1-199.9mm/s rms
Measurement range of displacement
0.001-1.999mm p-p (Velocity and displacement range is limited
by acceleration199.9m/s2)
Measurement accuracy
±10%+2digits
Measurement frequency range of acceleration
10Hz-1KHz (LO) 1KHz-15KHz (HI)
Measurement frequency range of velocity
10Hz-1KHz (LO)
Measurement frequency range of displacement
10Hz-1KHz (LO)
Displays update cycle
1 seconds
LCD display
3 1/2 digits display
Single output
AC output 2 V peak (display full scale)
Load impedance 10KΩor more earphones can be connected
Power supply
9V battery (not include)
Static current
≤20μA
Operating current
≤25mA
Auto power-off function
Turns off automatically after 60 seconds
LCD backlight function
7 seconds
Operating temperature range
0-40℃
Operating humidity range
30-90%RH
Low battery indication
6.9V±0.2V
Weight: Approx. 648g / 22.9oz
Size: Approx. 17 * 6.5 * 3cm / 6.7 * 2.6 * 1.2in(probe is not included)
Package List:
1 * Vibration Meter
2 * Probes
Features
1、Visually displays measurement value and state
2、Acceleration, velocity and displacement measurement
3、Different vibration frequency selection
4、High sensitivity probe for accurate measurement
5、Provides long and short probe head, each one is suitable for different situation measurement.
Package Weight and Dimension
| Weight | 1.43 lb |
| Width | 8.19 Inch |
| Height | 2.34 Inch |
| Length | 10.14 Inch |
