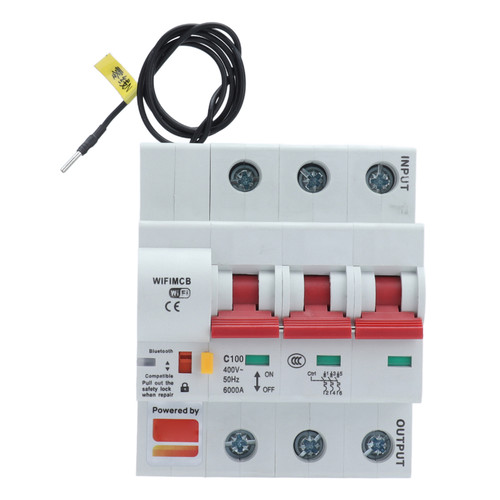

Product Overview
Standard: GB/T 10963.1 IEC 60898-1
Rated Frequency: 50/60Hz
Number of Poles: 3P
Pollution Degree: 2
Protection Level: IP20
Installation Category: II, III
Designated Operating Temperature: -25℃~+65℃
Rack Rated Current: 80A, 125A
Rated Current: 125A
Instantaneous Trip Form: C
Rated Interrupting Capacity: 6kA
Mechanical Life: Over 10,000 times
Electrical Life: Over 6,000 times
Electro Magnetic Compatibility Performance: Compliant with GB/T 18449
Salt Mist Endurance: Compliant with GB/T 2423.17 48h
Dust Resistance: Compliant with GB 4208 8h
Maximum Wiring Capacity: 50mm²
Tightening Torsion: 4-5Nm
Features
1、BUILT IN WIFI ANTENNA: Under the premise of enhancing the stability of the circuit breaker WiFi transceiver, can keep the appearance clean and prevent contact interference
2、PROFESSIONAL SERVICE: Smart WiFi circuit breaker has a strong professional cloud server to provide you with safe and reliable back office services
3、EXCELLENT PERFORMANCE: The impact voltage withstand of the smart wifi circuit breaker switch is 6000V, ensuring that the service life of the device can be effectively improved under overvoltage conditions
4、GOOD DURABILITY: Circuit breaker has non electromagnetic interference performance. After electrical fast transient pulse group immunity test, surge test, electrostatic discharge and other tests, the durability and non interference of the equipment have reached the standard and are still intact
5、VARIOUS FUNCTIONS: Phone APP remote switch circuit breaker has remote control switch function, overload protection function, mechanical lock, timing control function, manual opening and closing function, short circuit protection function, LED indicator light, sharing control function
Package List
1 x Circuit Breaker
1 x User Manual
Package Weight and Dimension
| Weight | 1.08 lb |
| Width | 4.68 Inch |
| Height | 4.29 Inch |
| Length | 4.68 Inch |
