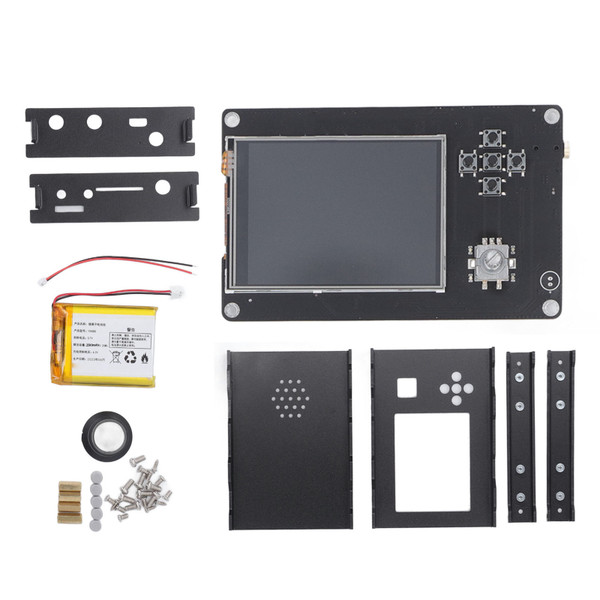

Software Defined Radio Receiver Module 3.2 Inch Touch LCD Display Control Board with Black Aluminum Alloy Housing Kit

Item Type: Software Defined Radio Receiver Module
Model: PORTAPACK H2
Material: PCB
TCXO Accuracy: 0.5ppm
Touch Screen Size: 3.2 Inch
Main Board Battery: CR2032 3V Button Battery 150mAh (built in battery)
Battery Capacity: 2500mAh 3.7V 104050 Lithium Ion Battery Pack (matching battery)
Functions:
3.2 inch touch screen with speaker socket
With sound input and output function (ADC, DAC)
With a small memory card slot (for storing data, playback data, frequency management)
Equipped with TCXO high accuracy clock (0.5ppm), the frequency is as accurate as the intercom
The new firmware automatically switches to external TCXO (you can see in the menu that the clock source is external)
Equipped with RTC clock function and built in CR1220 battery (recording the current time when saving baseband files)
Supports offline GPS simulation
3.2 inch touch screen, supports battery charging (4.2V), long press the middle button (3 seconds) to turn on and off, use for iOS or for Android headphone to send voice, and the headphones can listen to sound
Can be paired with a 2500 milliampere high capacity battery for longer working hours!
Features Supported As Of 2019/12/3:
App, mode specifics
Receivers
ADS B receiver
ACARS receiver
AIS
AFSK
Analog audio receiver
POCSAG receiver
Radiosonde receiver
TPMS
APRS
For DMR framing
SIGFOX
LoRa
SSTV
TETRA framing
Transmitters
ADS B transmitter
APRS
Xy Ep transmitter
Jammer
Key fob
LGE tool
Microphone transmitter
Morse transmitter
Burger pagers
LCR transmitter
Close Call
Signal generator
Frequency manager
OOK encoders
POCSAG transmitter
RDS transmitter
Soundboard
SSTV
TEDI LCR AFSK
TouchTunes remote
Custom remote
Other
Play Dead mode
Pitch RSSI output
Stealth mode
Unistroke text entry
Other Introduction:
It adds an LCD touch screen, user interface navigation controls, audio output and input, micro memory card slot, 2.5PPM crystal oscillator, real time clock backup battery, speaker, lithium battery charger and center key power on and off function (long press) for 3-4 seconds).
It provides a user interface and the necessary signal processing to do many useful things without a computer.

Features

1、3.2 INCH TOUCH SCREEN: This Software Defined Radio receiver features an upgraded 3.2 inch wide angle screen, touch control, perfect support for official firmware and seamless upgrades.
2、SPEAKER FUNCTION: Increase the maximum power amplifier of the speaker by 3W, can be switched with headphone, paired with the speaker you need to achieve external function.
3、CHARGING AND DISPLAY: Supports USB charging and LED display of charging status, with buttons to turn the machine on and off, without the need for connection.
4、HARDWARE UPGRADE: With pure hardware logic implementation, it does not affect subsequent firmware upgrades, upgrades battery sockets, and comes standard with more suitable batteries.
5、LESS INTERFERENCE: Metal shell high accuracy active crystal oscillator with strong anti interference ability, built in TCXO high accuracy clock (0.5ppm), with keycaps and comfortable buttons.
