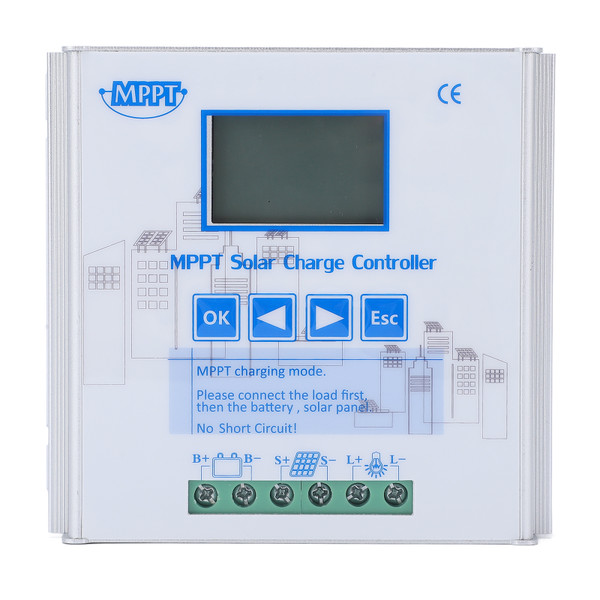

Product Overview
Model: LSECM10A-12/24V
Rated Current: 10A
Photovoltaic Maximum Access Power:
12V: 10A-130W
24V: 10A-260W
Controller Power Supply: Powered by battery or photovoltaic panel.
Charging Method: MPPT charging function.
Load: Various of working modes available, pure light control mode, normally open mode, light control nd time control mode, which has four periods and morning light.
Protection Type: Solar battery anti reverse charging protection, battery open circuit protection, battery reverse connection protection, overload protection, etc.
Features
1、High Efficiency: The MPPT controller can track the maximum power point photovoltaic array to provide larger charging current and improve the efficiency.
2、Safe Protection: Comes with solar anti reverse charging protection, battery reverse connection protection, battery open circuit protection and so on.
3、Good in Control: Also has lithium battery activation function and voltage stabilizing charging function to avoid controller crash and protecting battery.
4、Stable for Work: Adapt to various batteries, and when the battery does not supply power to the controller, it will turn to photovoltaic power for work.
5、Broader Fitting: Applicable to a variety of batteries, including ternary lithium batteries, lithium iron phosphate batteries and more, very practical.
Package List
1 x Solar Charge Controller
1 x User Manual
Package Weight and Dimension
| Weight | 1.98 lb |
| Width | 7.02 Inch |
| Height | 4.29 Inch |
| Length | 7.8 Inch |
