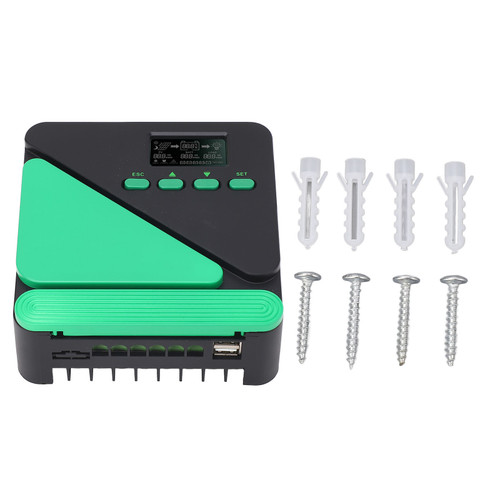

Solar Charge Controller MPPT Voltage Current LCD Display Battery Regulator Charger 12V24V60A

Item Type: Solar Charge Controller
Standard: L60
System Voltage: 12V/24V (lead acid battery)
Maximum Charge and Discharge Current: 60A
Solar Panel Maximum Input Power: 18V-24V-750W/36V-48V-1500W
Load Working Time Setting: 1-24 Hours. Adjustable
Charging Mode: PWM
Overpressure Protection: 17V/34V
Fully Disconnected: 13.8V/27.6V Adjustable
Undervoltage Disconnection: 10.8V/21.6V Adjustable
Over-Discharge Recovery Voltage 12.2V Adjustable
No-Load Loss: ≤40mA
Connection Wire Specifications: ≤3#AWG（22mm²）
Working Environment Temperature: -25℃ -55℃

Features

1、The controller is used for solar street lamps, solar power generation systems, etc., to regulate charging and discharging, which can prevent battery from being over-discharged and causing damage.
2、12V/24V automatic identification of lead-acid battery voltage. Maximum charge and discharge current is 60A
3、LCD display and simple button mode.
4、Intelligent micro-processing with automatic temperature compensation according to the pulse width PWM charging method.
5、Adjustable charge and discharge control parameters. Settable load operation mode
6、Reverse battery discharge, undervoltage, reverse connection protection, etc.
7、Reverse polarity protection, overload protection, overcharge protection. short circuit protection.
8、Wide applicability, automatic identification of day/night
9、The timing of the street lamp is adjustable from 1 to 24 hours. With dual-time load discharge setting function
10、Unique dual-time control enhances the flexibility of the streetlight system
11、Adopt temperature compensation, automatic adjustment of charge and discharge parameters to improve battery life
12、The controller has overcharge, over discharge, overload, short circuit automatic protection
13、Any combination of PV modules and battery reverse connection automatic protection

Package List
