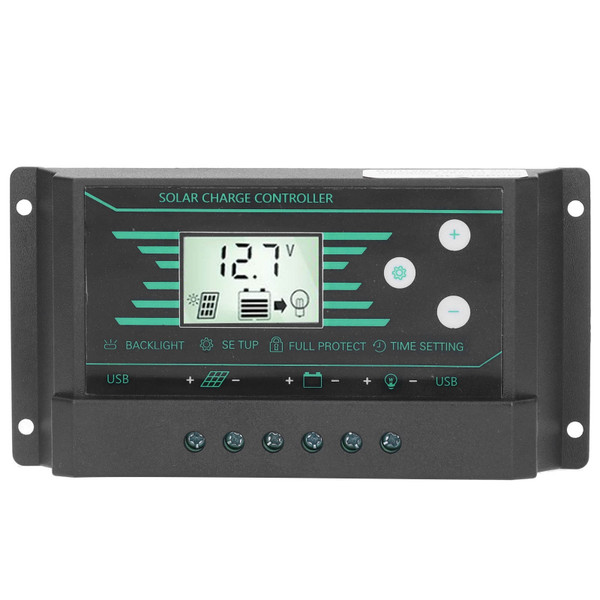

Solar Panel Regulator Charge Controller PWM Dual USB LCD Display 30A 12V/24V for Lampz10

Conditon: 100% Brand New
Item Type: Solar Charge Controller
Material: Plastic
Color: As Pictures Shown
Optional Model: z10, z20, z30
System Voltage: 12V/24V Automatic Adaptation
Rated Charging Current: 10A 20A 30A
Rated Discharge Current: 10A 20A 30A
Maximum Photovoltaic Voltage: Maximum 23V for 12V Battery; Maximum 46V for 24V Battery
Boost Charging Voltage: 14.4V
Floating Voltage: 13.7V (Default Value, Adjustable)
Discharge Cut-Off Voltage: 10.7V (Default Value, Adjustable)
Discharge Recovery Voltage: 12.6V (Default Value, Adjustable)
Charging Recovery Voltage: 13V
Light-Controlled Turn-On Threshold: PV Panel 8V (Light-Controlled Turn-On has a Delay)
Standby Current: ＜10mA
Working Temperature: -35℃-60℃
USB Output: Dual USB Output, 5V/2.5A (Maximum)

Features

1、The role of the solar charge and discharge controller is to adjust the power delivered from the solar panel to the battery.
2、Use LCD display, all settings can be completed by one‑key operation. Extremely convenient and intuitive to use to control the working status of the entire system.
3、Dual USB output, maximum current up to 2.5A, system voltage 12V/24V automatic adaptation.
4、Automatic disconnection when the battery is full, automatic memory data storage, easy to use.
5、Perfect protection function, electrical protection for reverse connection, short circuit, over current, etc.

Package List

1 x Solar Charge Controller

1 x Manual
